WIFI Music Bluetooth Sauna Heater Control Kit for Multifunctional 220V/380V Switch Panel Work Sauna Room Temperature Adjustment
Dual control panel / 9.0KW 380V Version / 12V OED lamp
Precio de oferta
$23.00
Precio habitual
$30.00
Ir directamente a la información del producto

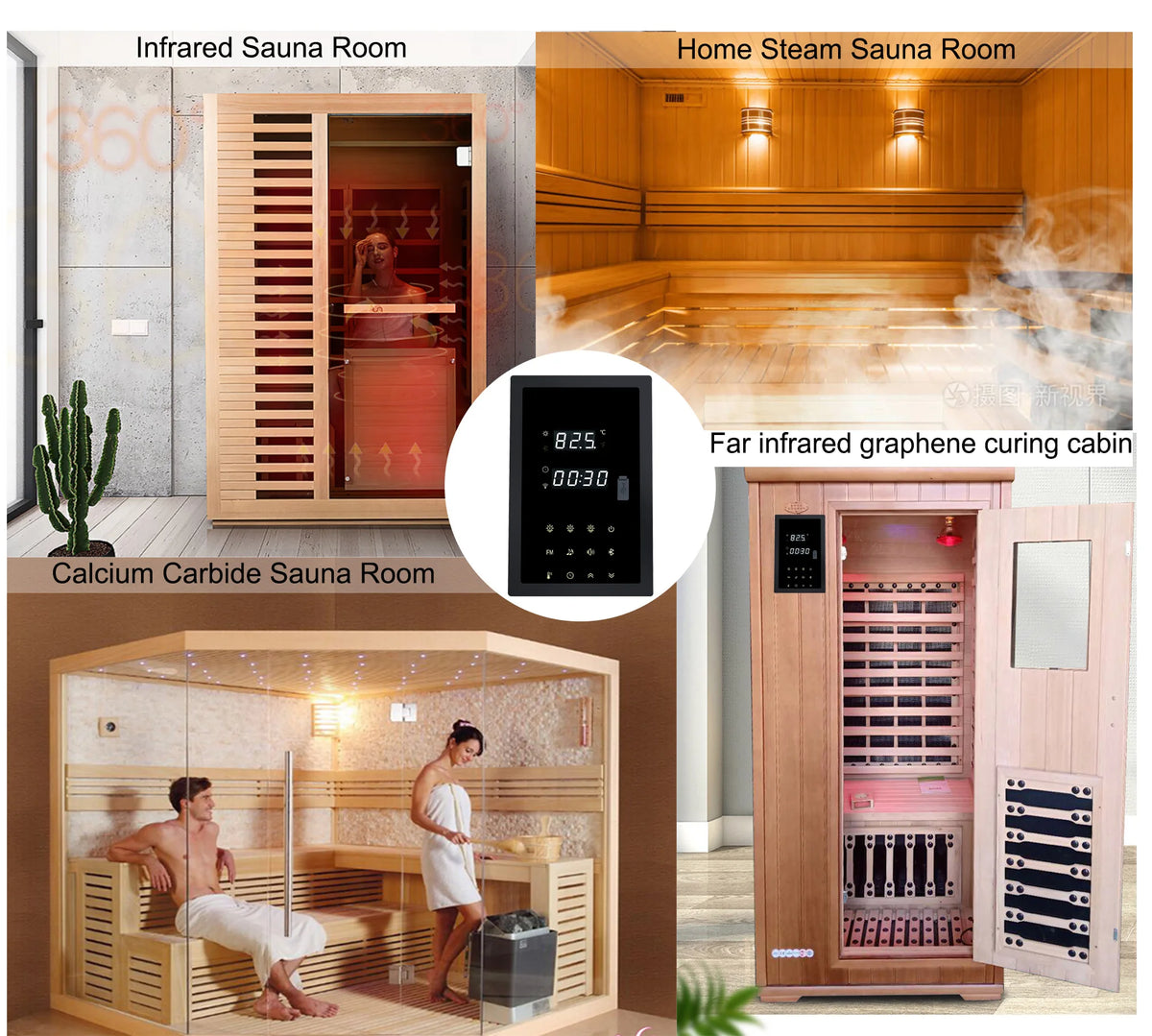

The controller is applicable to dry and wet sauna rooms, graphene/far-infrared light wave/far-infrared heating tube sauna rooms;
WIFI Music Bluetooth Sauna Heater Control Kit for Multifunctional 220V/380V Switch Panel Work Sauna Room Temperature Adjustment
Precio de oferta
$23.00
Precio habitual
$30.00
Envío calculado en el pago.
SPECIFICATIONS
Application: Sauna room,Khan steam room,light wave bath room
Brand Name: ThermoWise
Control load voltage: 440VAC/380VAC/220VAC/110VAC
Device power supply: 220VAC(110~240VAC)
Display: LED
Electric: No
Electrotherapy: Low Frequency Pulse
Fan Relay(Active): 10A
Function: Control temp,light,Mp3,Fan
Heating Relay: 30A
High-concerned chemical: none
Light Relay(Active): 10A
Model Number: KF-714
Multifunction: MP3,FM,Bluetooth
Origin: Mainland China
Panel material: Acrylic
RGB Lights: OEM 12V Lamp (Optional)
Remote Control: WIIFI TUYA APP
Sensor type: NTC 10K
Temperature display: °C/℉
Timing: 24 hours
Type: Electric Water Heater Parts
UV Relay(Active): 10A
Voltage: 240V-380V
WIFI Music Bluetooth Sauna Heater Control Kit for Multifunctional 220V/380V Switch Panel Work Sauna Room Temperature Adjustment
Product Features

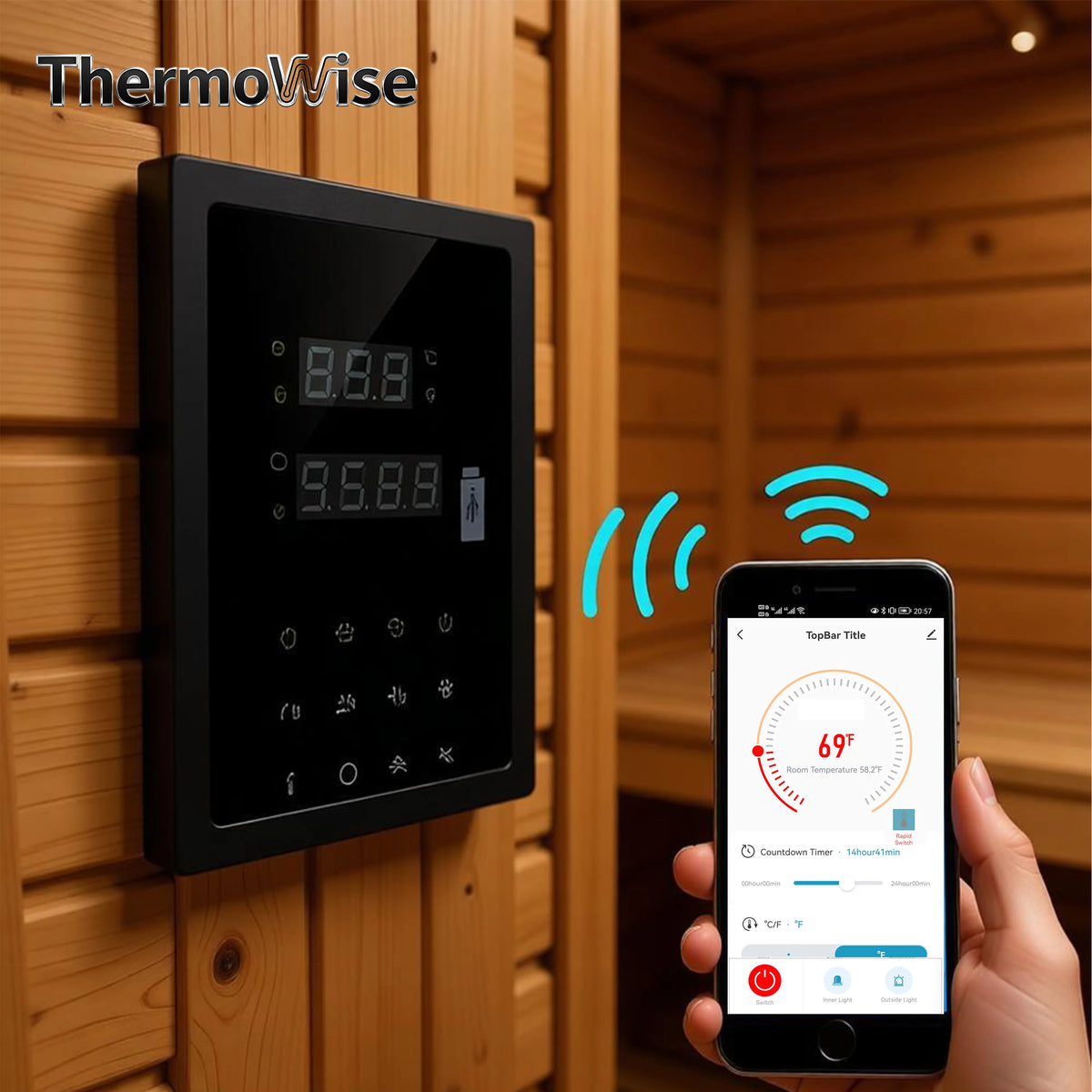

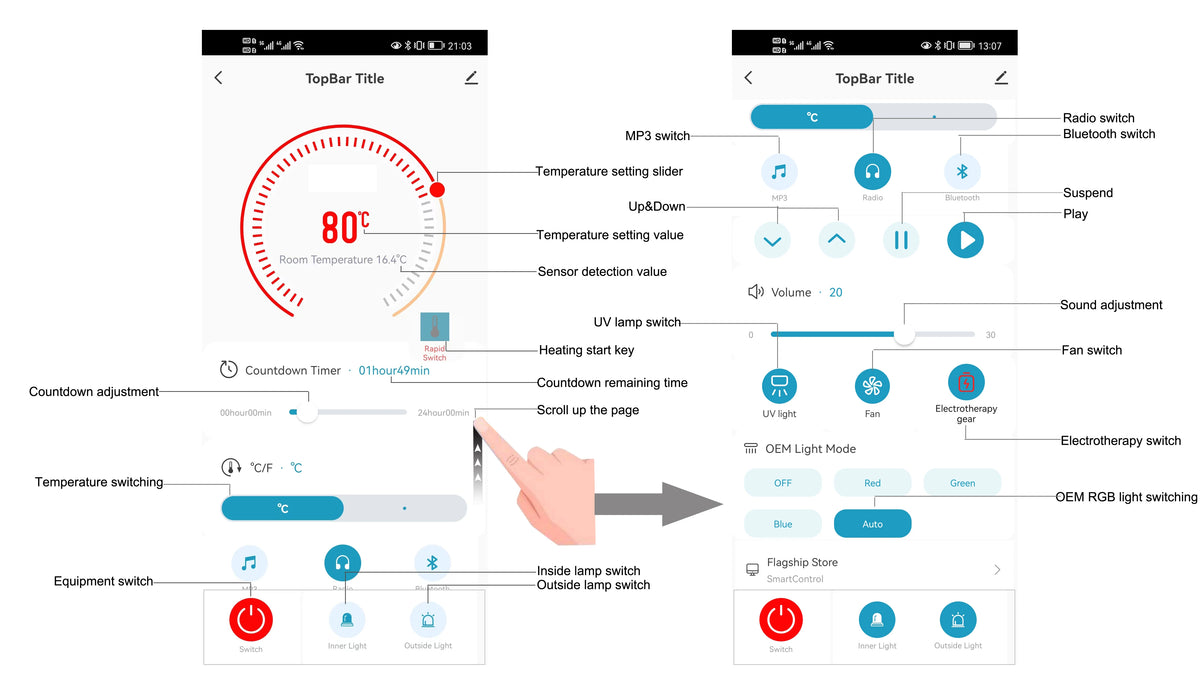

Embed TUYA WIFI smart chip, Mobile APP for remote adjustment and management of sauna room controller, 3 sets of heating 30A relays, Support heating equipment operating voltages of 440VAC, 380VAC, 240VAC, 230VAC, 220VAC, 110VA,supporting high-power infrared heating tubes/graphene/far-infrared light waves
Power down memory function
Countdown to work for 24 hours
Low-frequency pulse electrotherapy, stimulate acupuncture points, dredge meridians, improve circulation and good metabolism
Celsius temperature and Fahrenheit temperature free switching(°C/℉)
Multi functions: Heat, MP3, FM, inside and outside light, RGB LED light, fan, AUX(UV/Oxygen bar etc.)

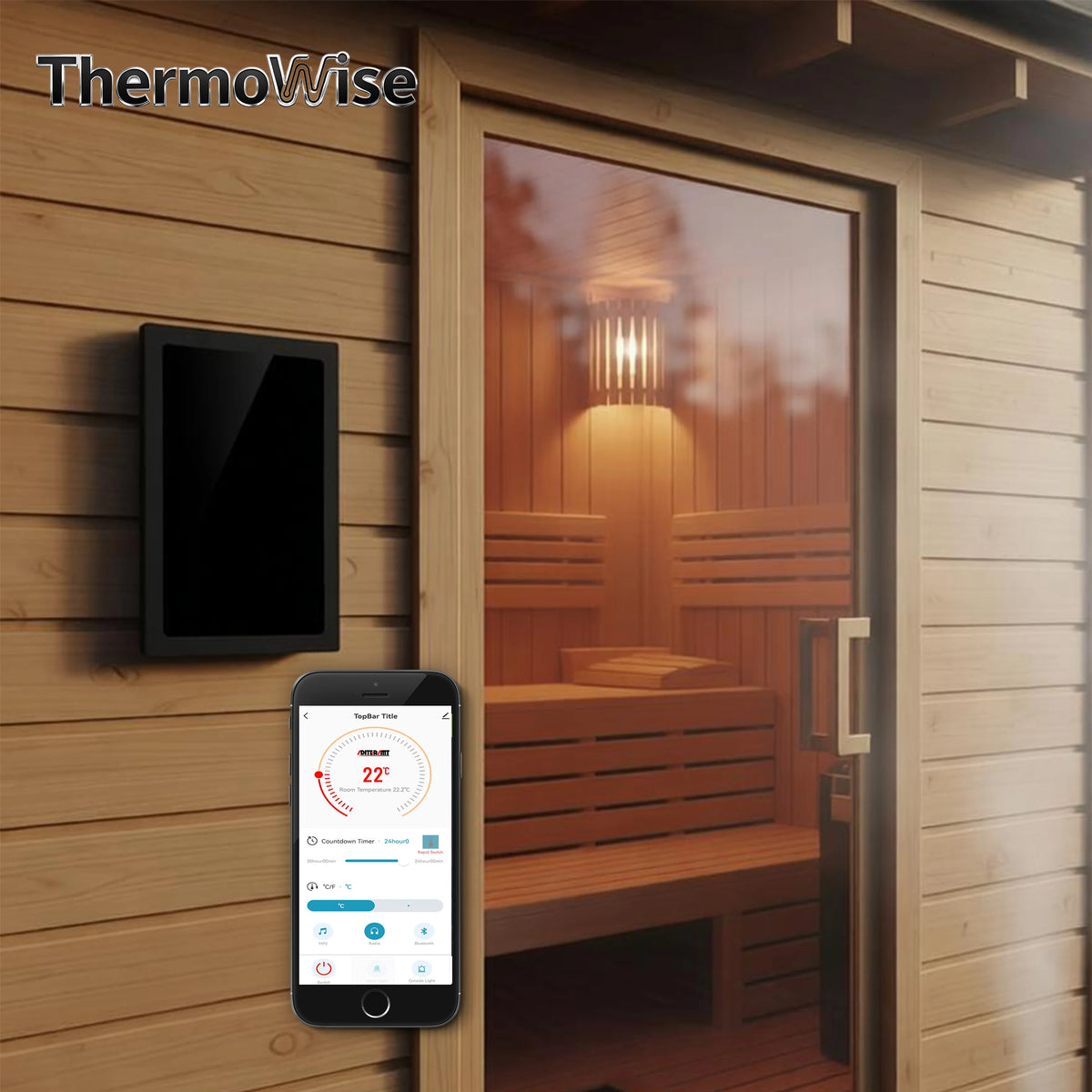

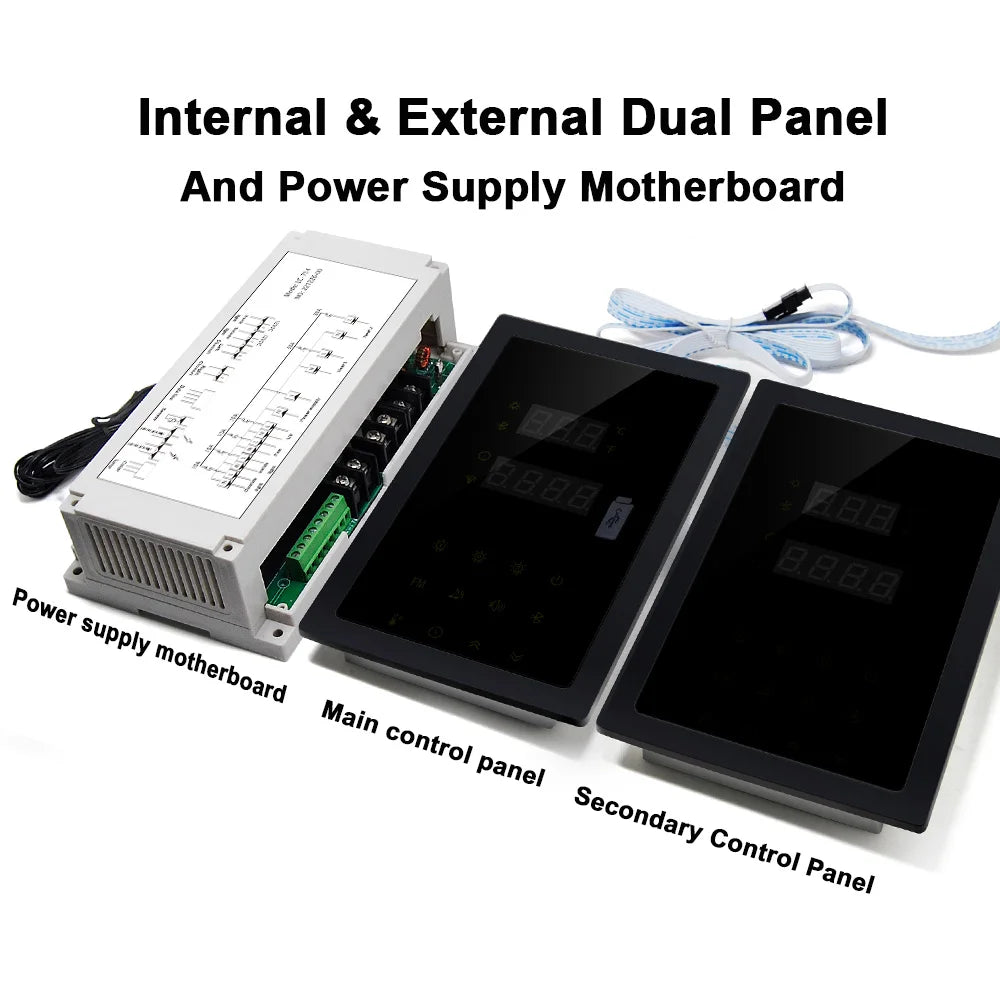

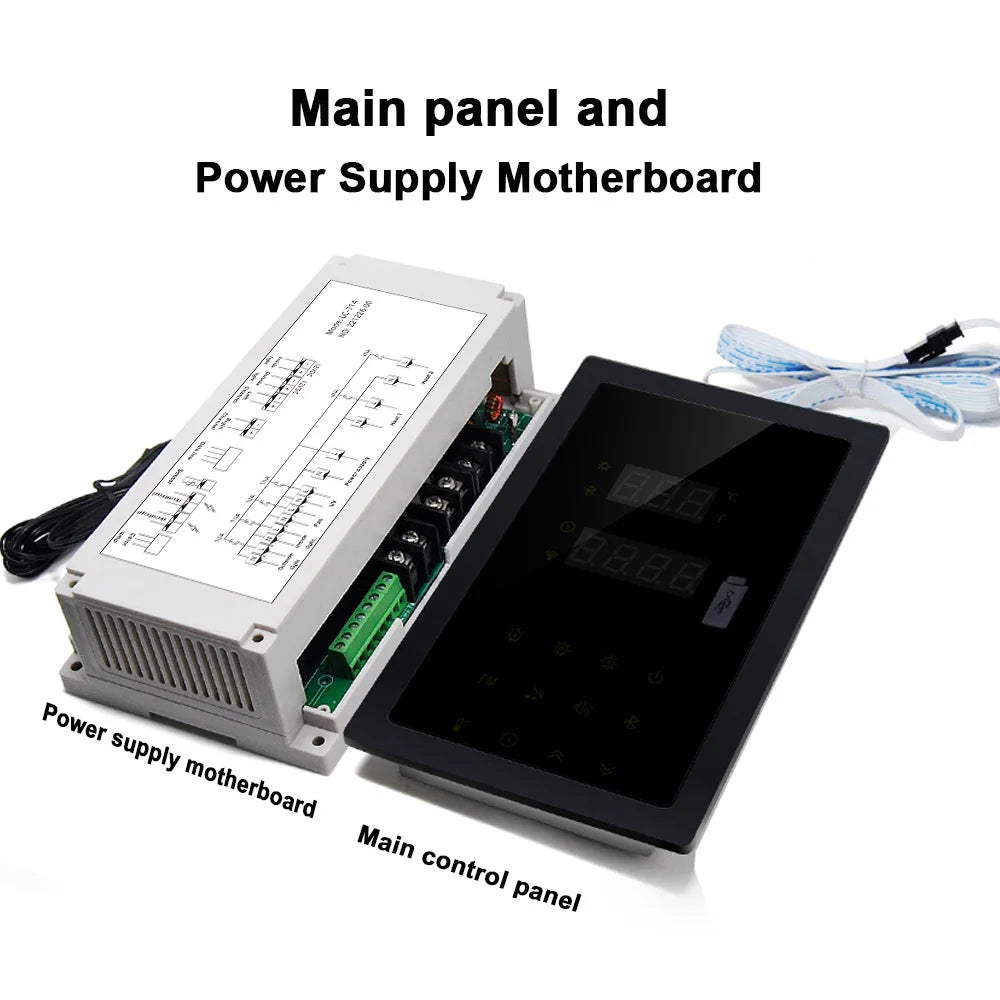

Dual panels: indoor display operation panel and outdoor display operation panel (optional);
Parameters
Temperature controlling range: 0~110°C(32℉ ~230℉)
Temperature measuring range: 0~110°C (32℉ ~230℉)
Time Setting：1~24 H
Equipment working input voltage: 110~240VAC 50HZ/60HZ

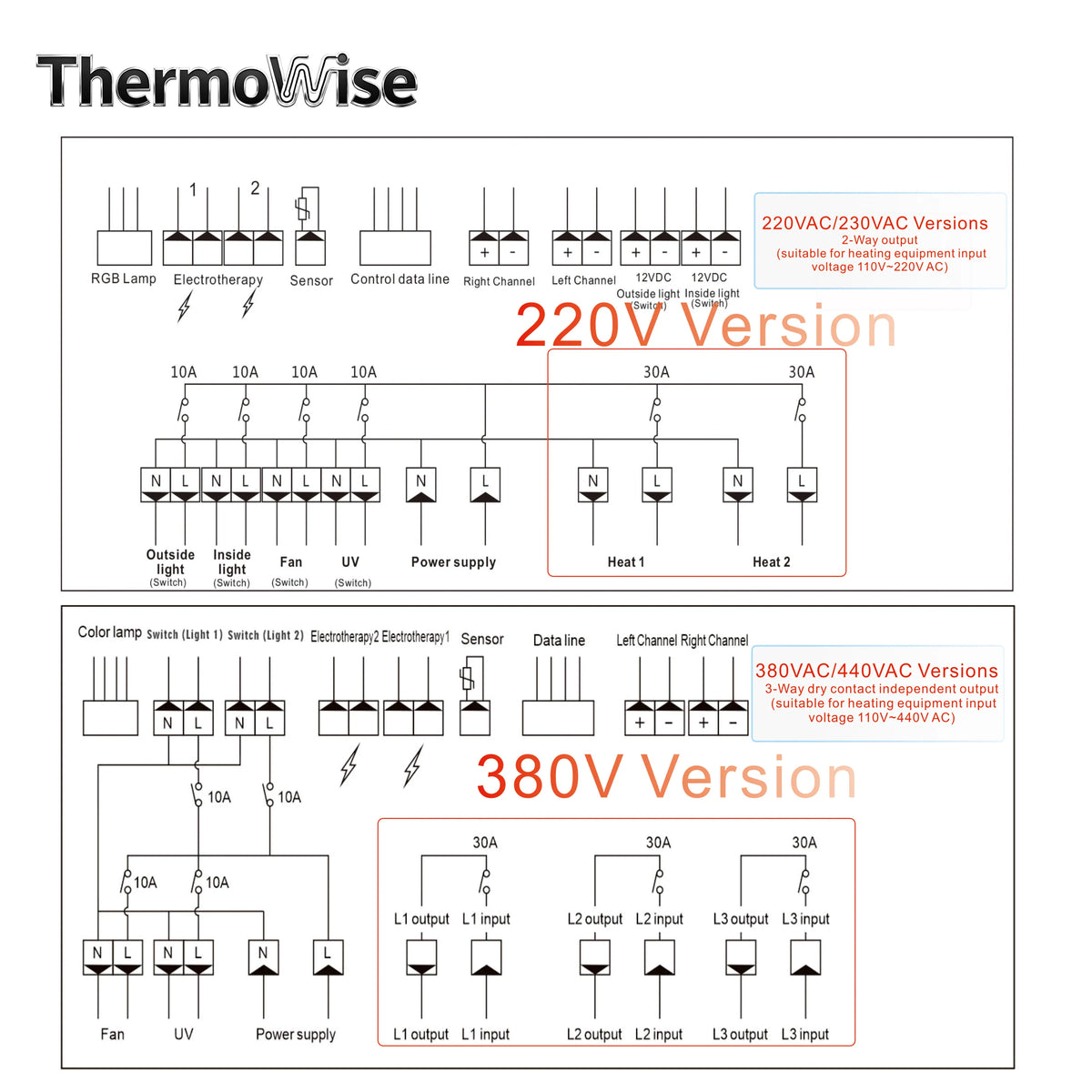

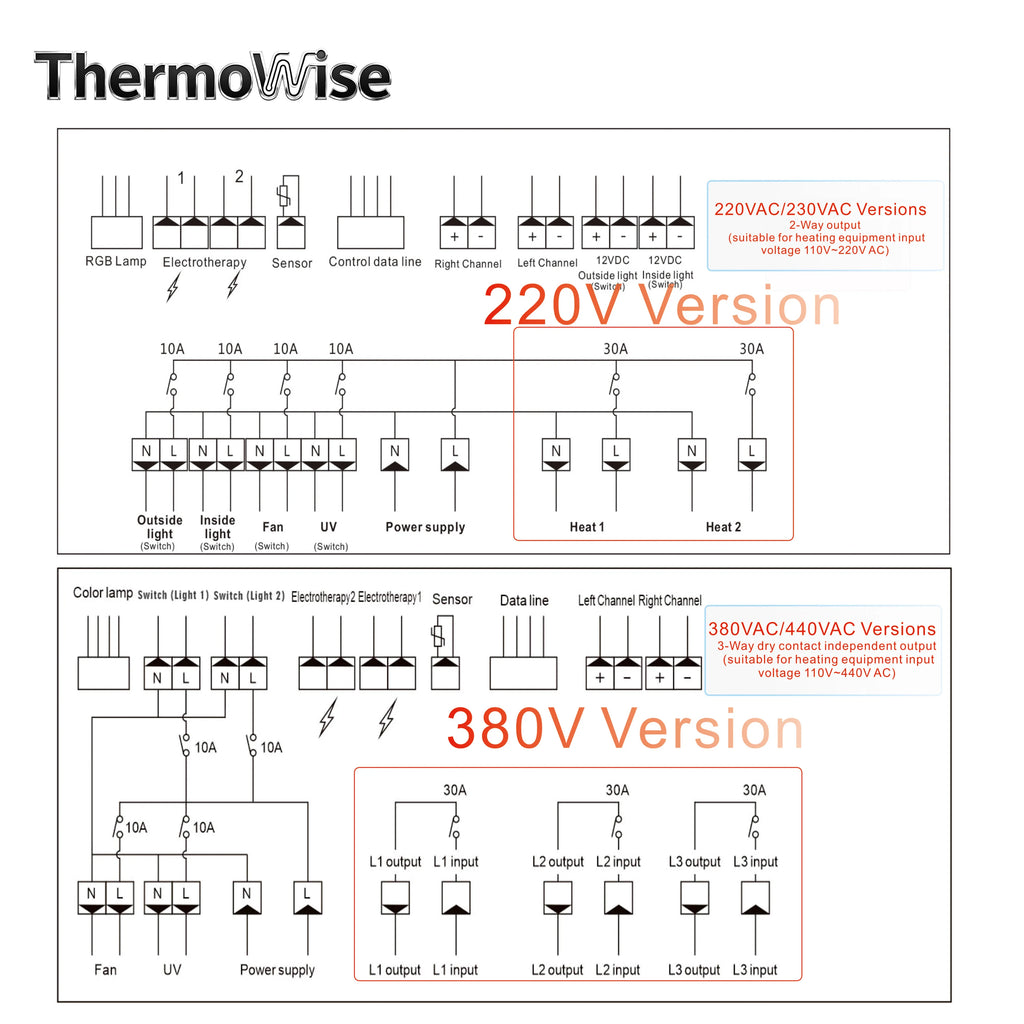

Equipment working output:
1. Electric heating (load) output control voltage range 110VAC,220VAC,230VAC,240VAC,380VAC,440VAC;
2.Electric heating 30A relays,Heating control output maximum power 220VAC 4.5KW/380VAC 9.0KW
(optional);
3. Fan (switch) 10A relay, maximum load 220V10A;
4. UV lamp (switch) 10A relay, maximum load 220V10A;
5. Inside lamp (switch) 10A relay, maximum load 220V10A;;
6. Outside lamp (switch)10A relay, maximum load of 220V10A;
7. Speaker 25W, output left and right channels;
8. Two groups of low-frequency pulse electrotherapy, 0~9 grades;
9. OEM 12V RGB LED lamp (optional);
(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)
Accuracy: ±1°C
Input: 1 NTC sensor(wire: 3m for standard, can be customized)
Consumption: ≤3 w
Ambient requirements: temperature/ -10~60°C; humidity/20~85% (No condensate)
Panel Outline Dimensions: 195mm x 126mm
Wall Opening size: 180mm x 95mm
Screw fixed size:180mm x 110mm
Panel Outline Dimensions: 195mm x 126mm
