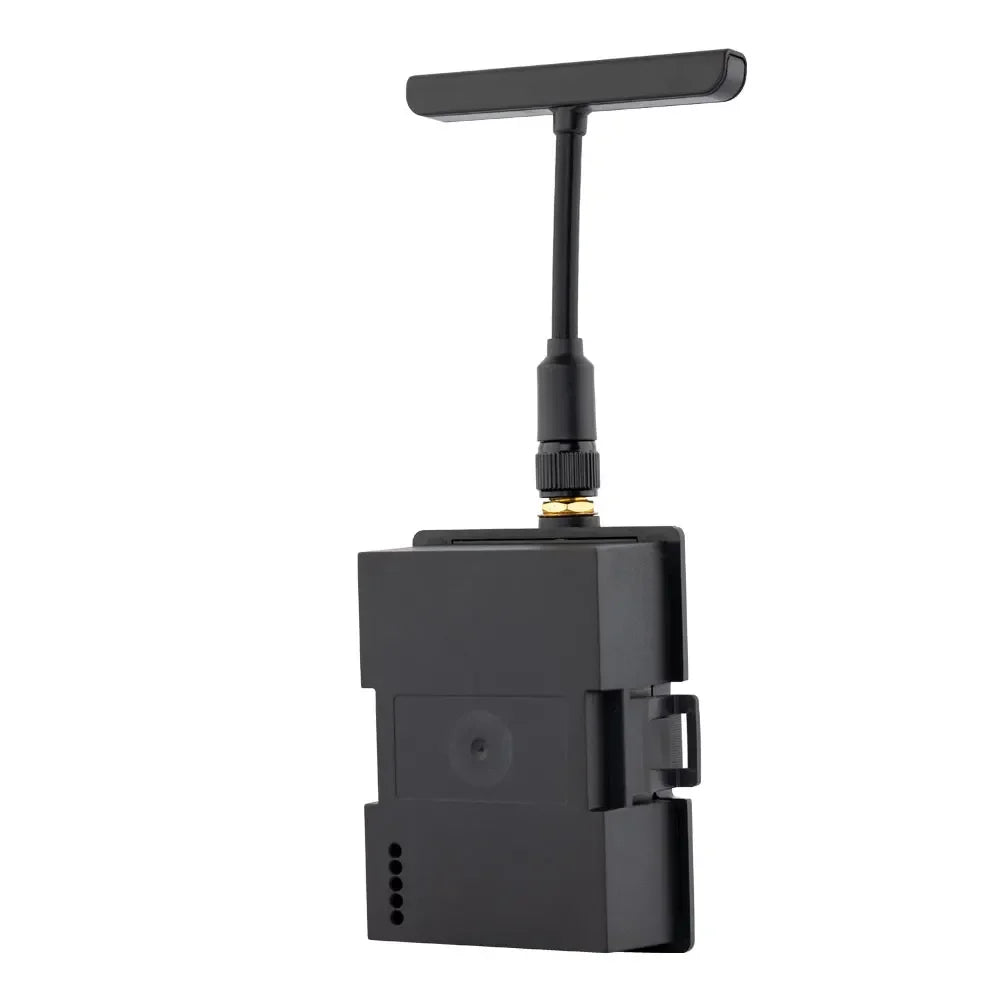

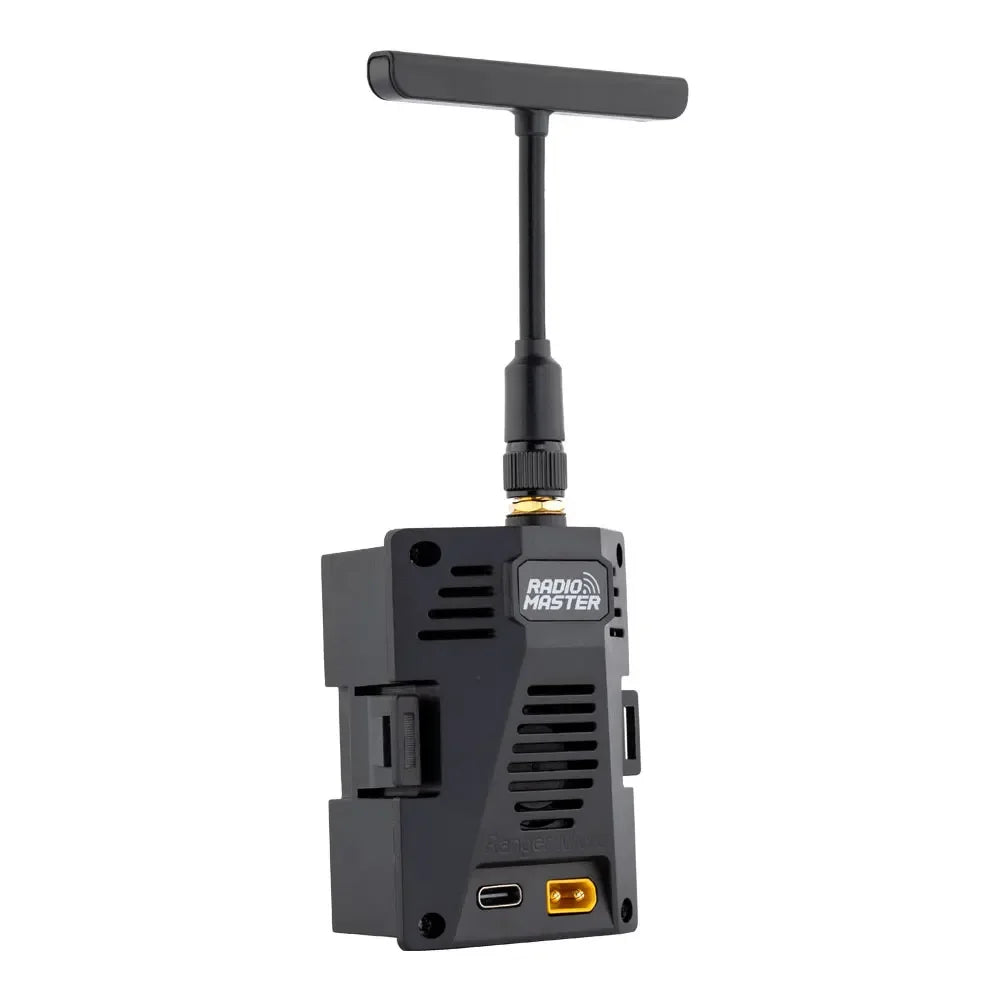

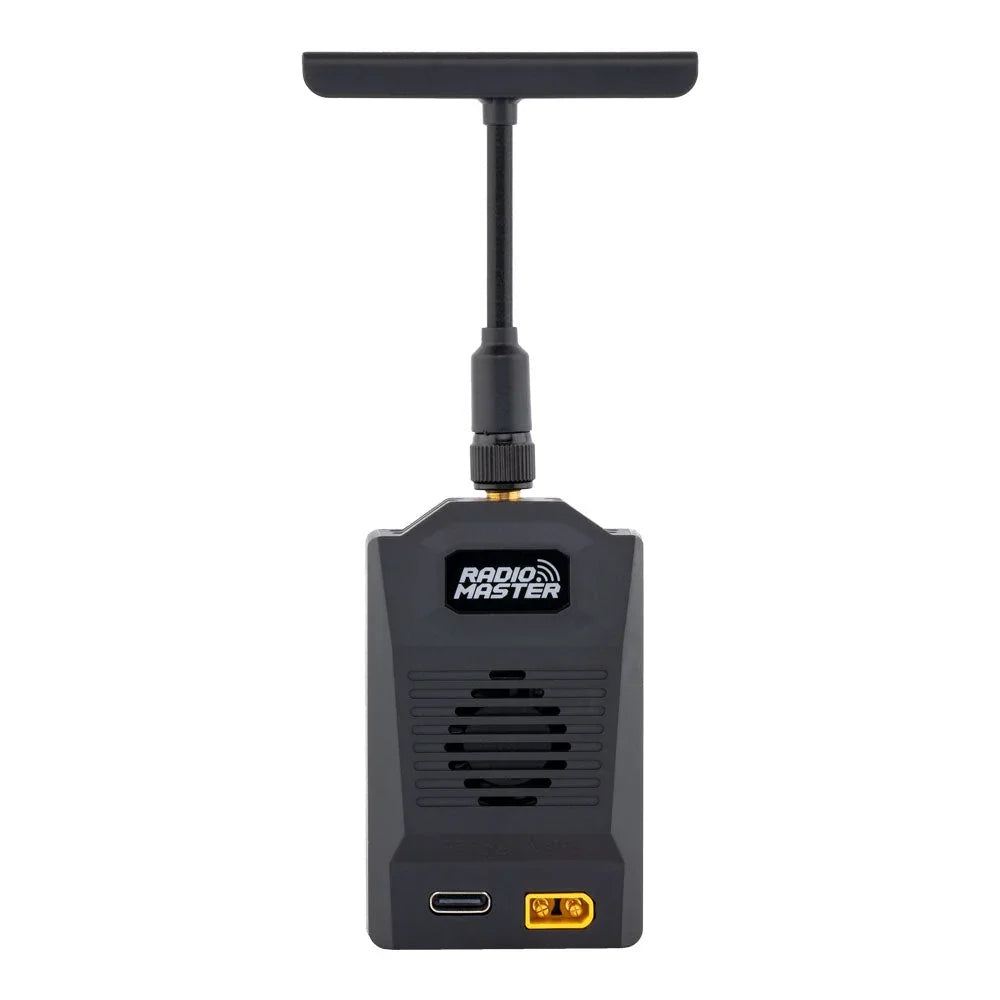

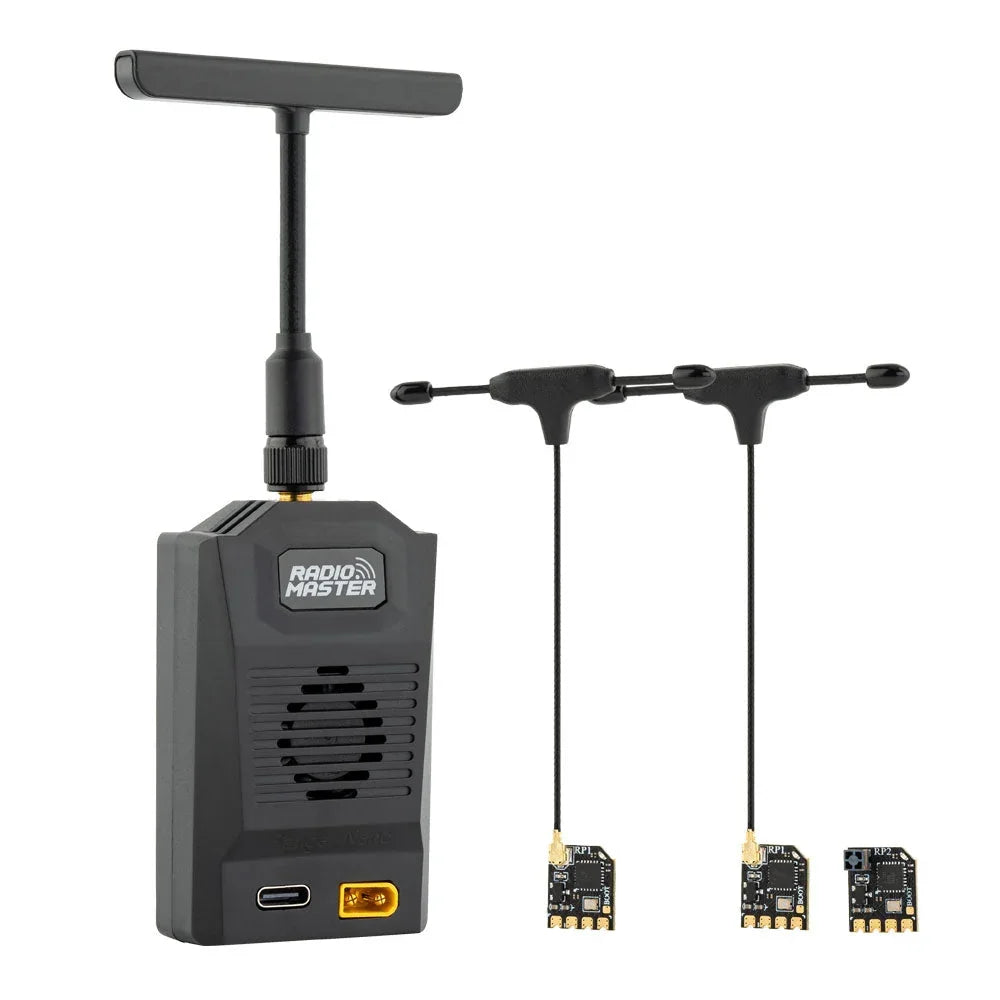

RadioMaster Ranger Micro 2.4GHz ELRS RF Module Support Bluetooth With ExpressLRS ISM FW for Boxer TX16S TX12 MKII
Ranger Nano
Precio de oferta
$3.99
Precio habitual
$5.99
Ir directamente a la información del producto
RadioMaster Ranger Micro 2.4GHz ELRS RF Module Support Bluetooth With ExpressLRS ISM FW for Boxer TX16S TX12 MKII
Precio de oferta
$3.99
Precio habitual
$5.99
Envío calculado en el pago.
SPECIFICATIONS
Brand Name: RADIOMASTER
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Origin: Mainland China
RC Parts & Accs: Radio Systems
Recommend Age: 14+y
Remote Control Peripherals/Devices: RECEIVERS
Technical parameters: KV1100
Tool Supplies: Battery
Upgrade Parts/Accessories: Adapter
Use: Vehicles & Remote Control Toys
Wheelbase: Upper Shell
Features
Built-in ExpressLRS Backpack

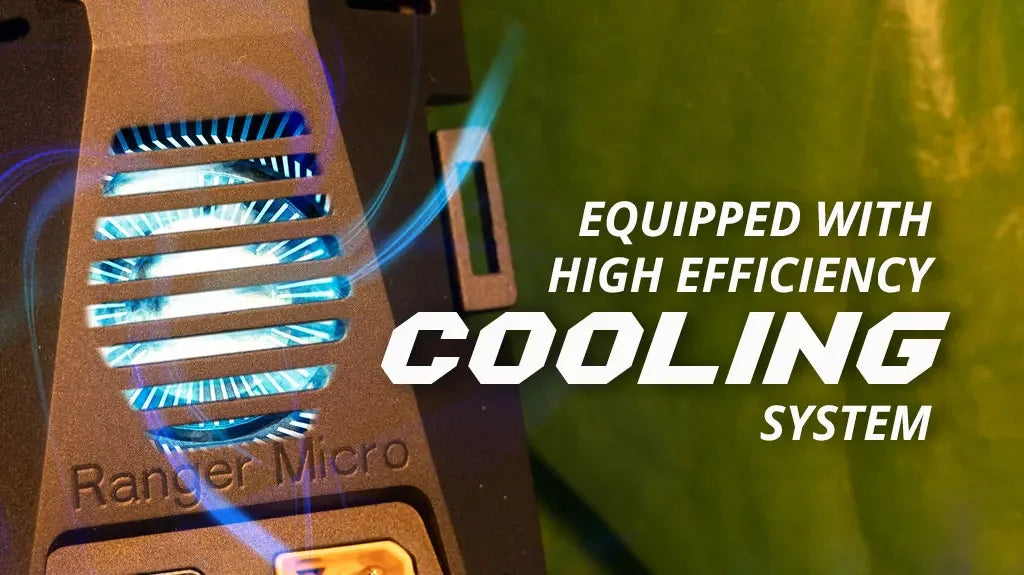

- High-efficiency cooling system

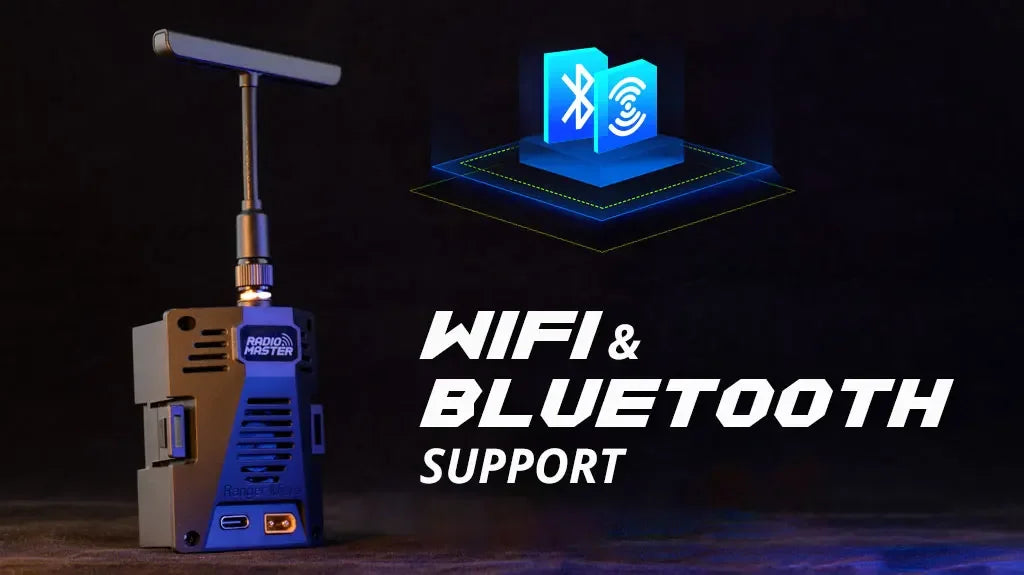

- Wifi and Bluetooth support

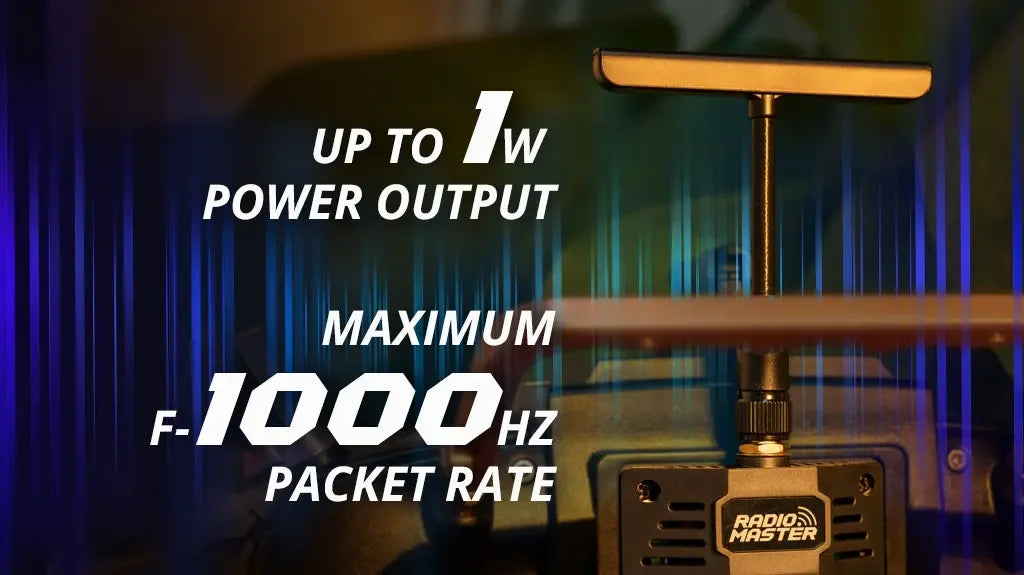

- Packet rates up to F-1000Hz
- T-antenna included
- With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification

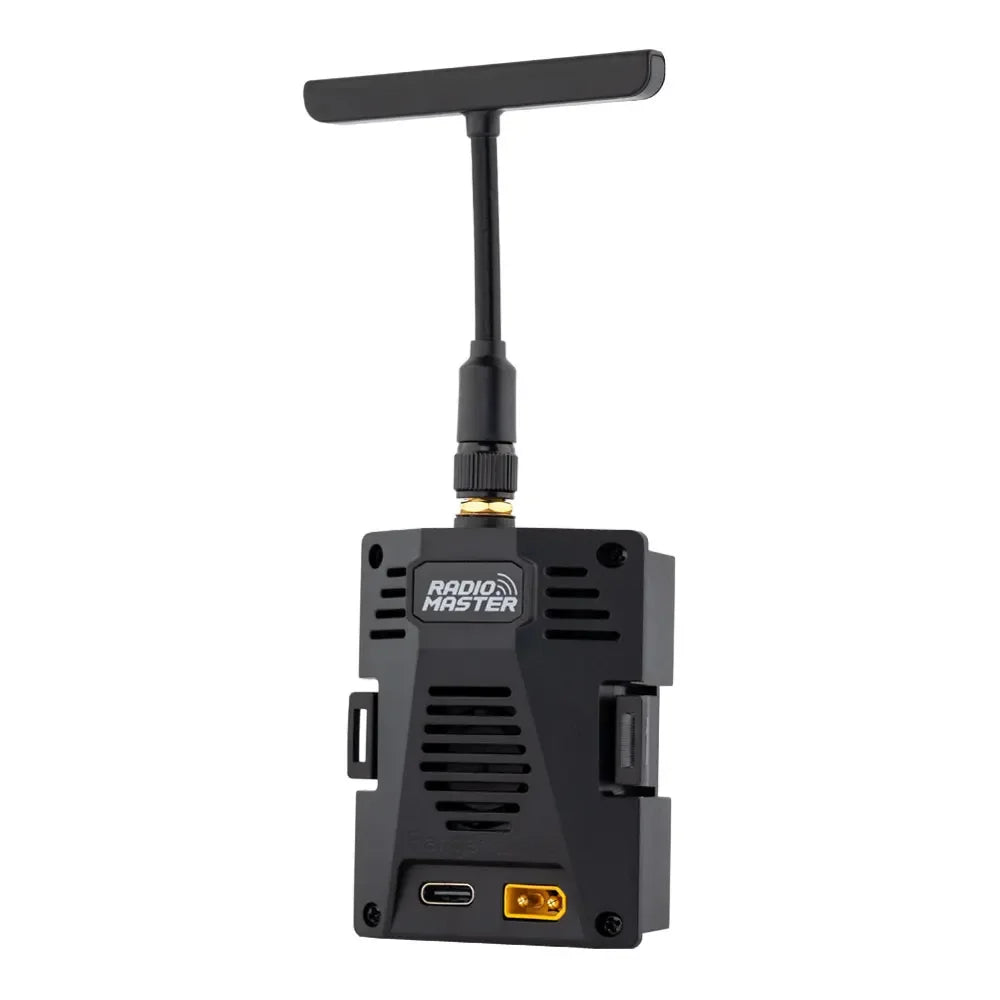

- Item: Ranger Micro Module
- Regulatory Domain: ISM2400

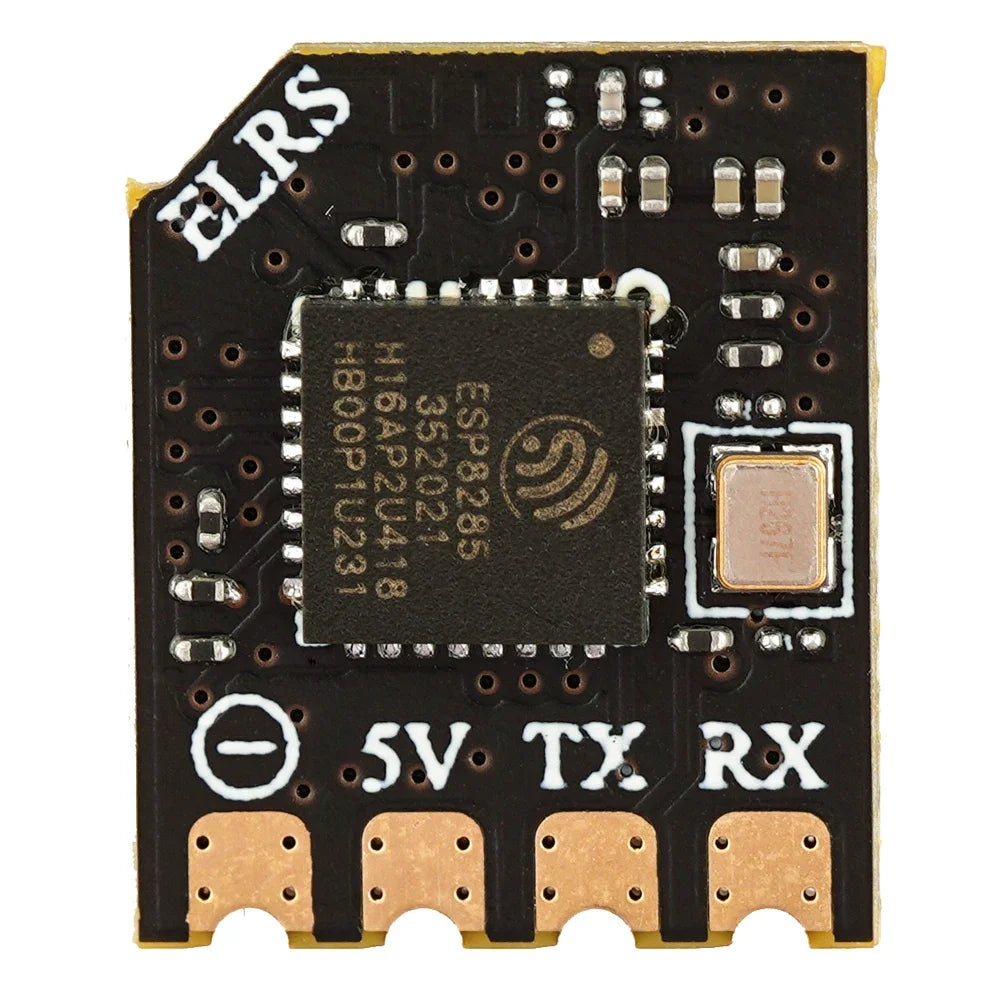

- MCU: ESP32(main), ESP8285(aux,as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- Wifi Support: Yes
- Bluetooth support: Yes

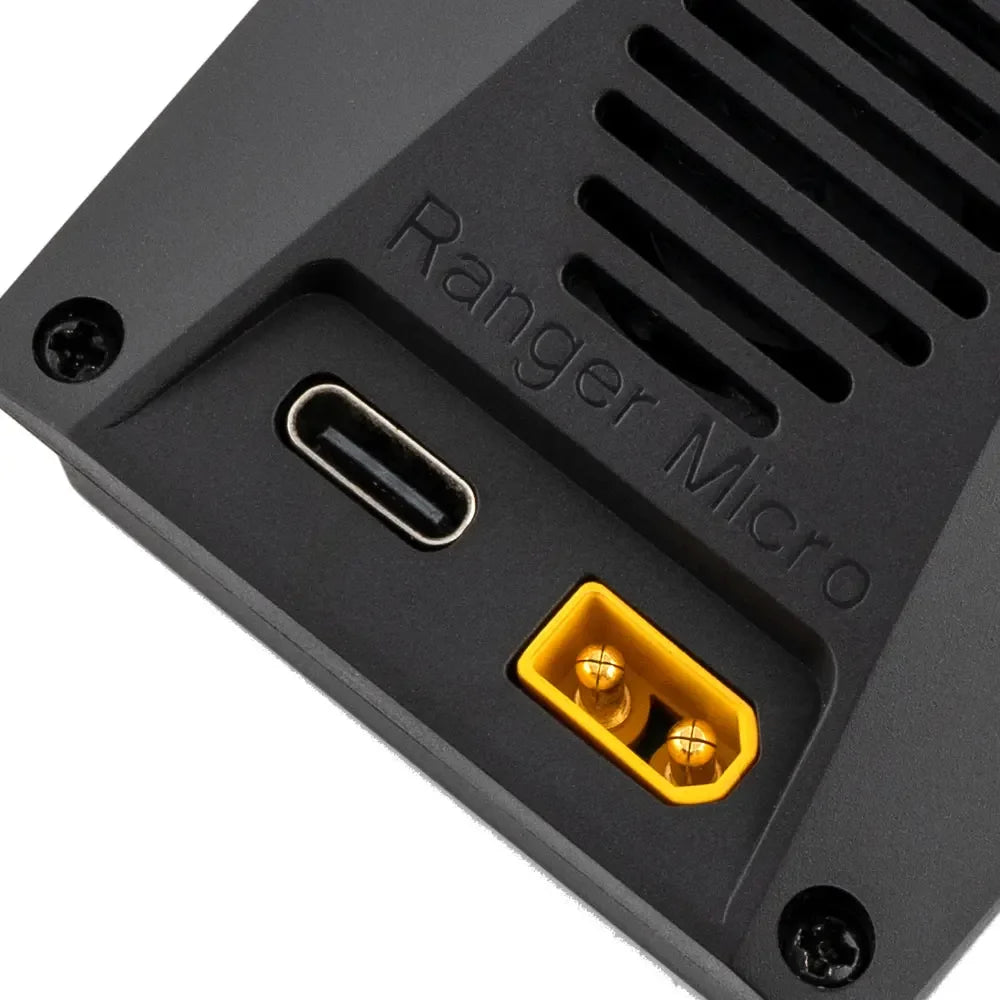

- XT30 Power supply voltage: DC 6V - 16.8V
- Weight: 50g (with antenna) / 40.5g (without antenna)

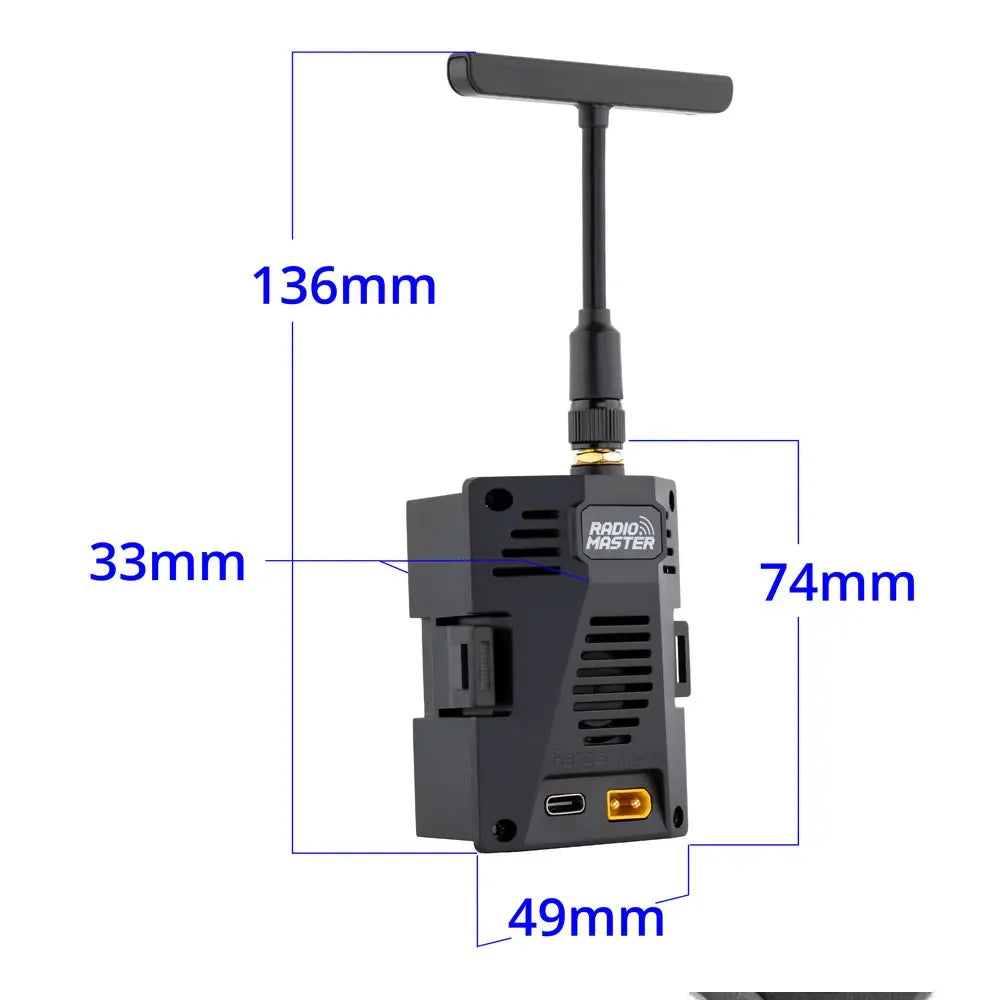

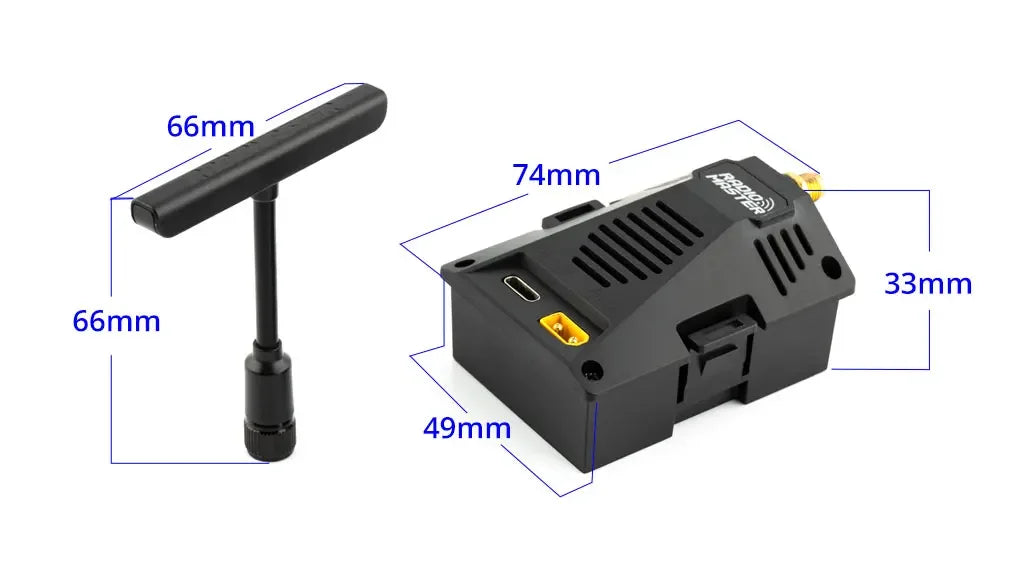

- Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
