SPECIFICATIONS

Brand Name: INJORA

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: for 1/18 RC Crawler

Origin: Mainland China

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: Motor

Size: TRX4M

Technical parameters: value 2

Tool Supplies: Assembly Category

Upgrade Parts/Accessories: Hydraulic Transmission Box

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Compatibility Notice:

ESC: Only compatible with INJORA MBL32 ESC and QuicRun Mini24 ESC. Not compatible with other ESCs!

Transmission: Only compatible with INJORA 370 transmission.

Battery: 3S batteries are highly recommended for optimal performance and smoother low-speed control.





Features:

New gold finish for a more eye-catching appearance.

Smooth and linear at low speeds, powerful and aggressive at high speeds.

Runs more quietly than brushed systems, producing virtually no noise.

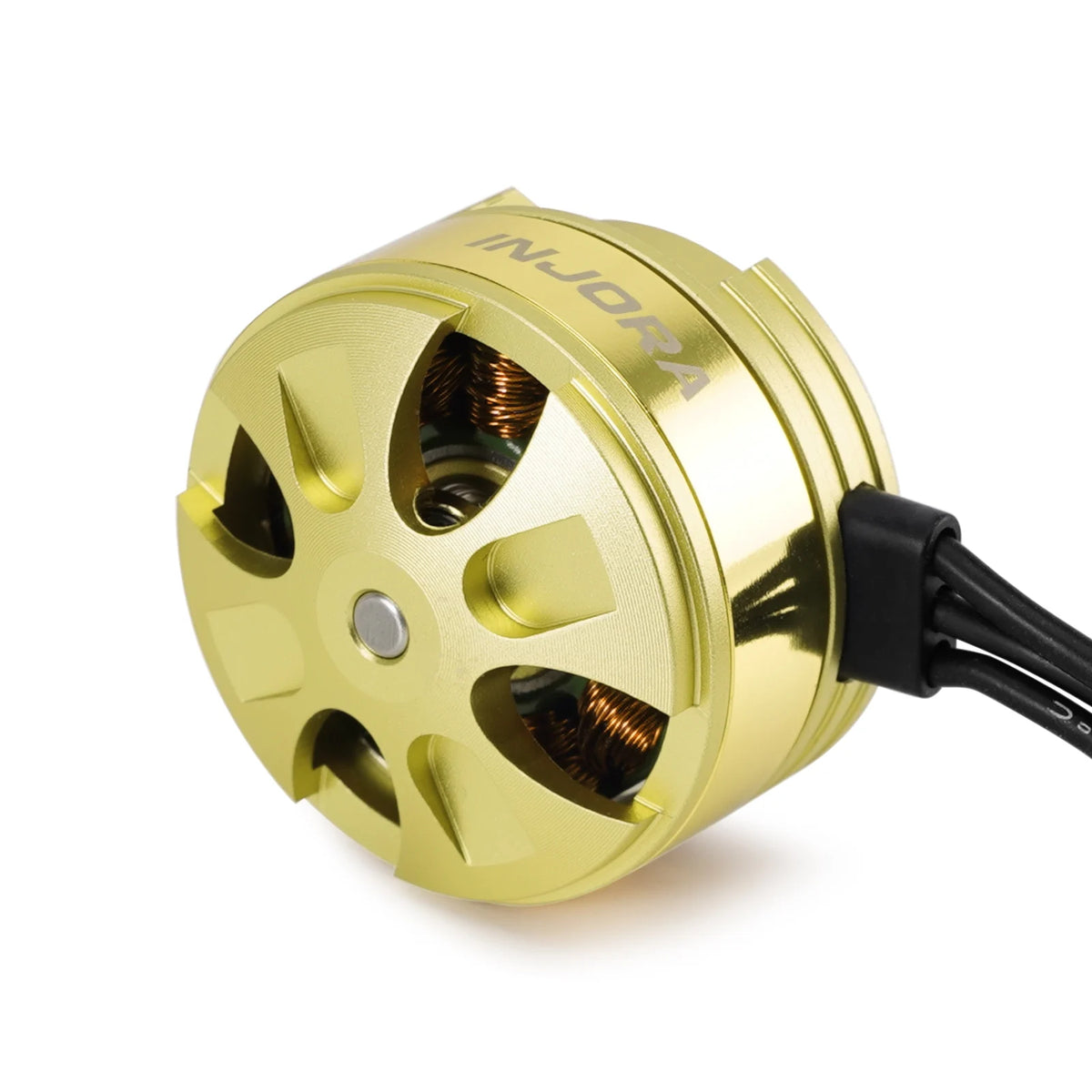

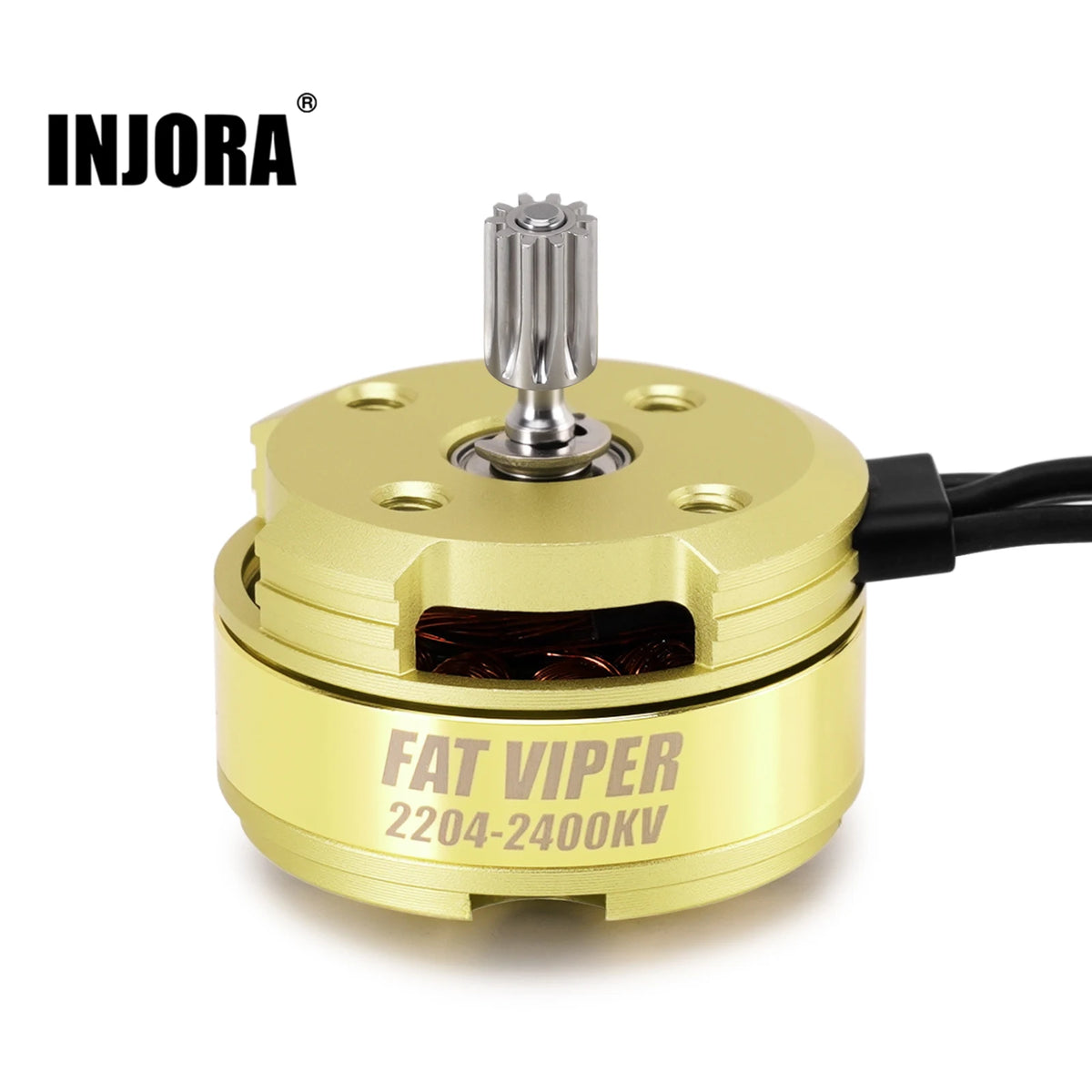

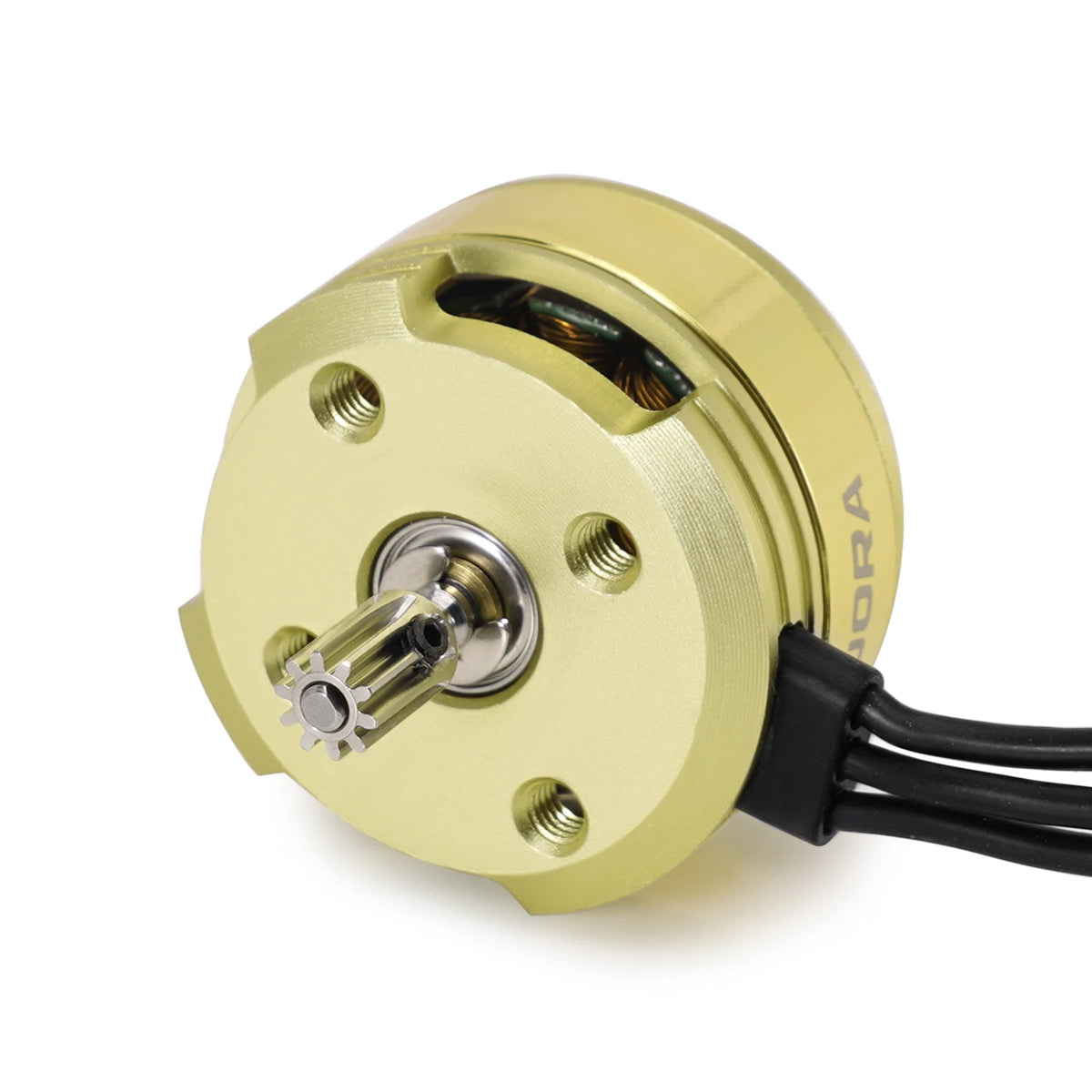

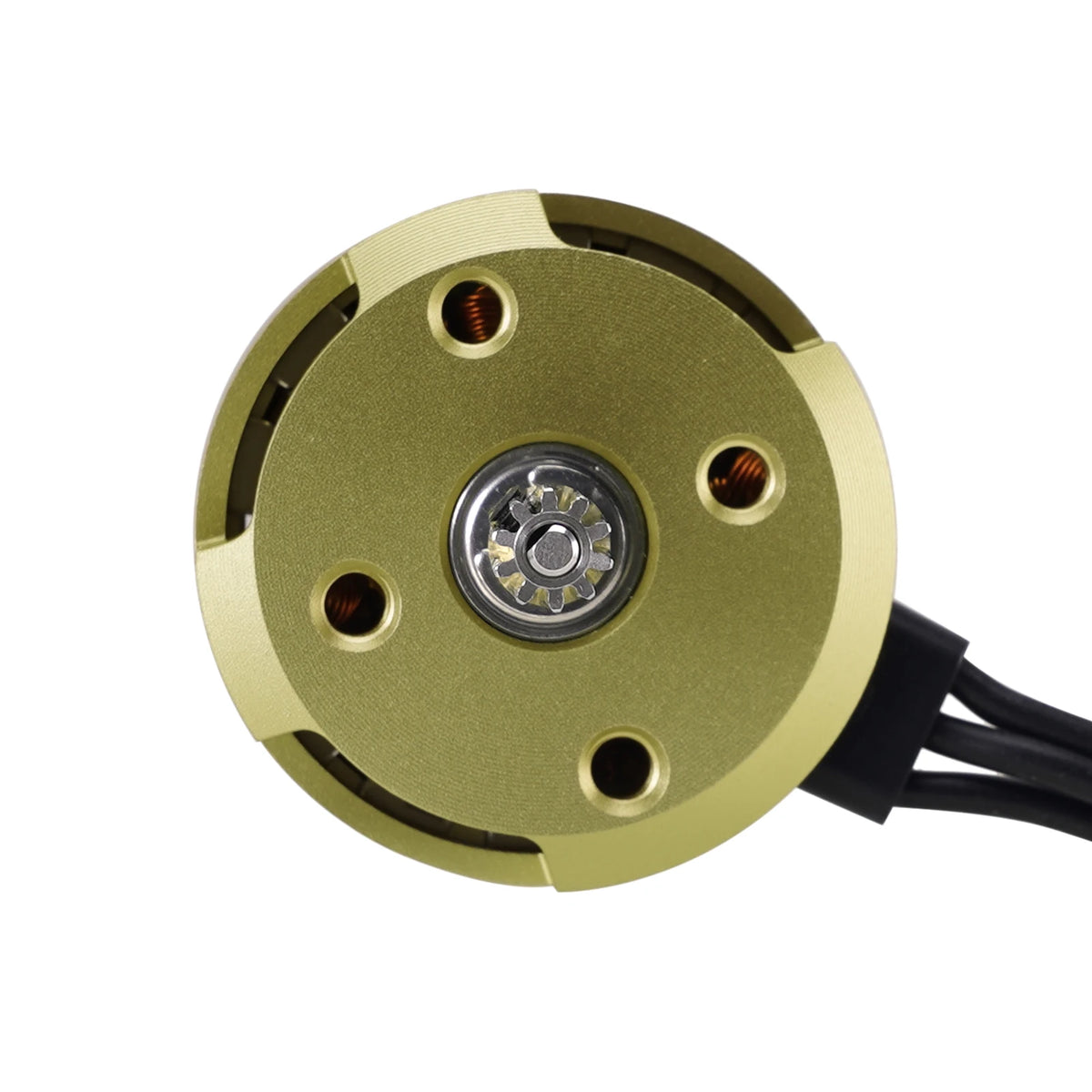

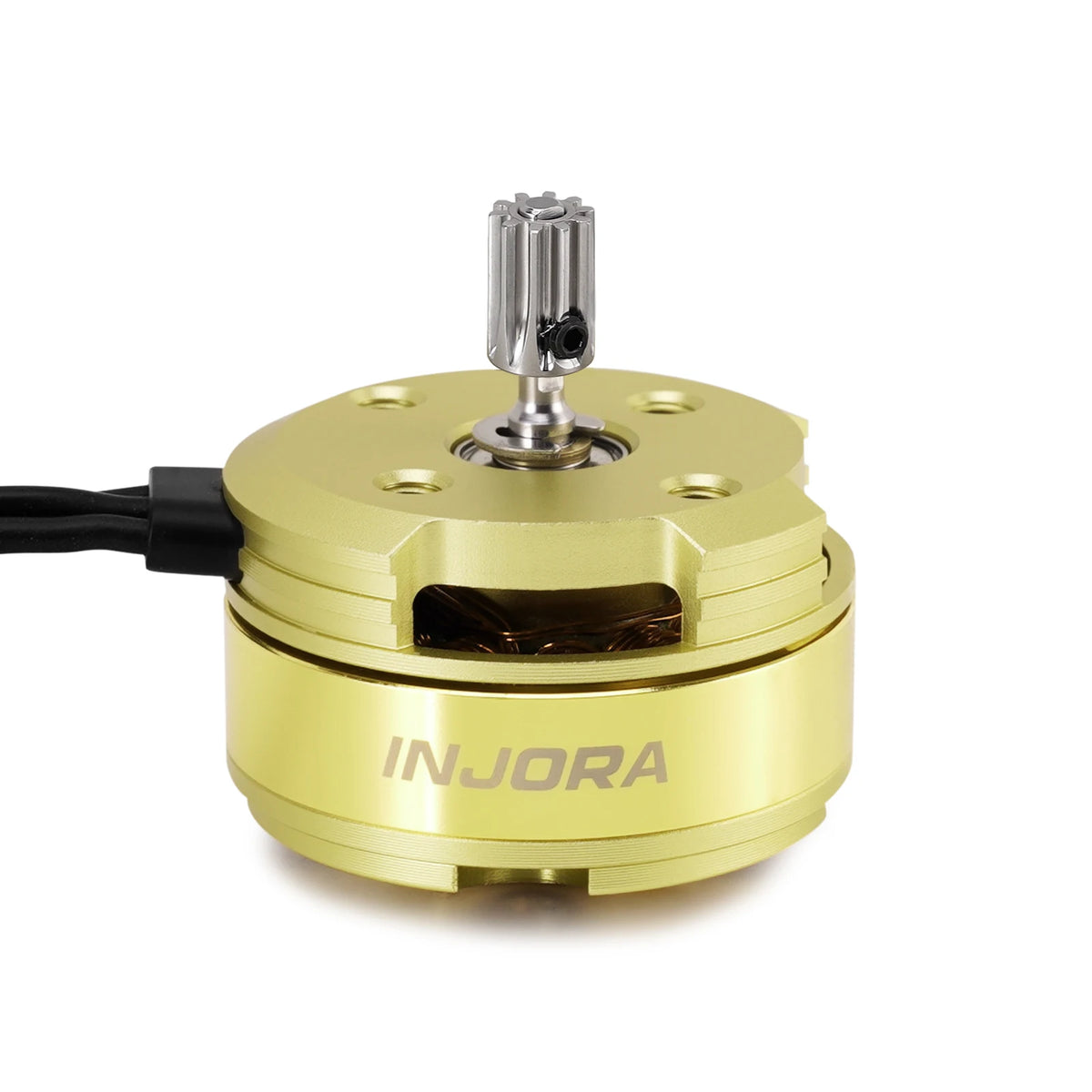

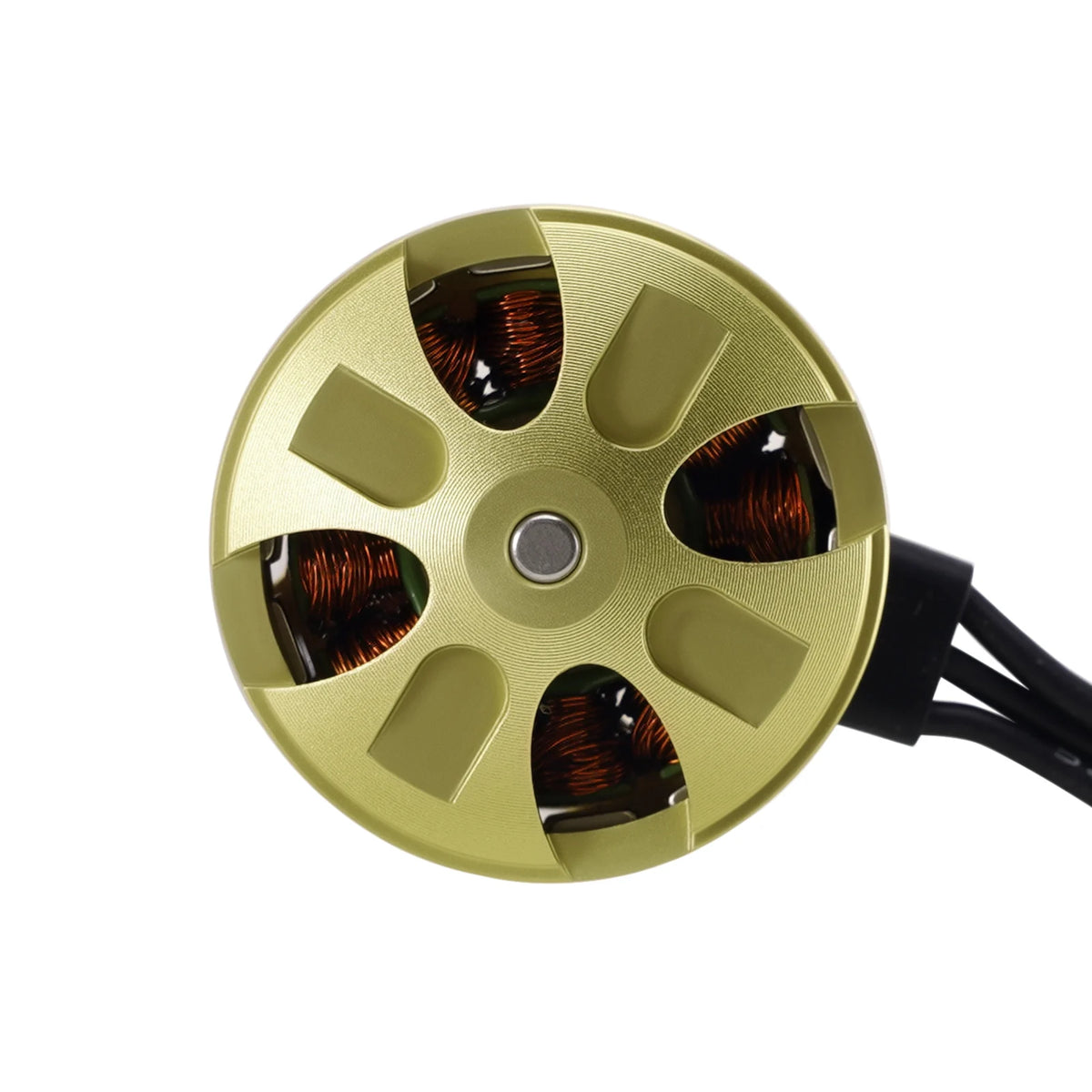

2204 gold fat viper outrunner motor will give your car a better driving performance.





Specifications:

Model Number: 2204

Motor Type: Sensorless Brushless Outrunner

RPM/Volt: 2400KV

Motor Poles: 14

Sine Mode Power: 7

Max Power: 2500W

No-Load Current: 0.7A

Max Peak Current: 50A

Motor Connectors: PH2.0 3Pin

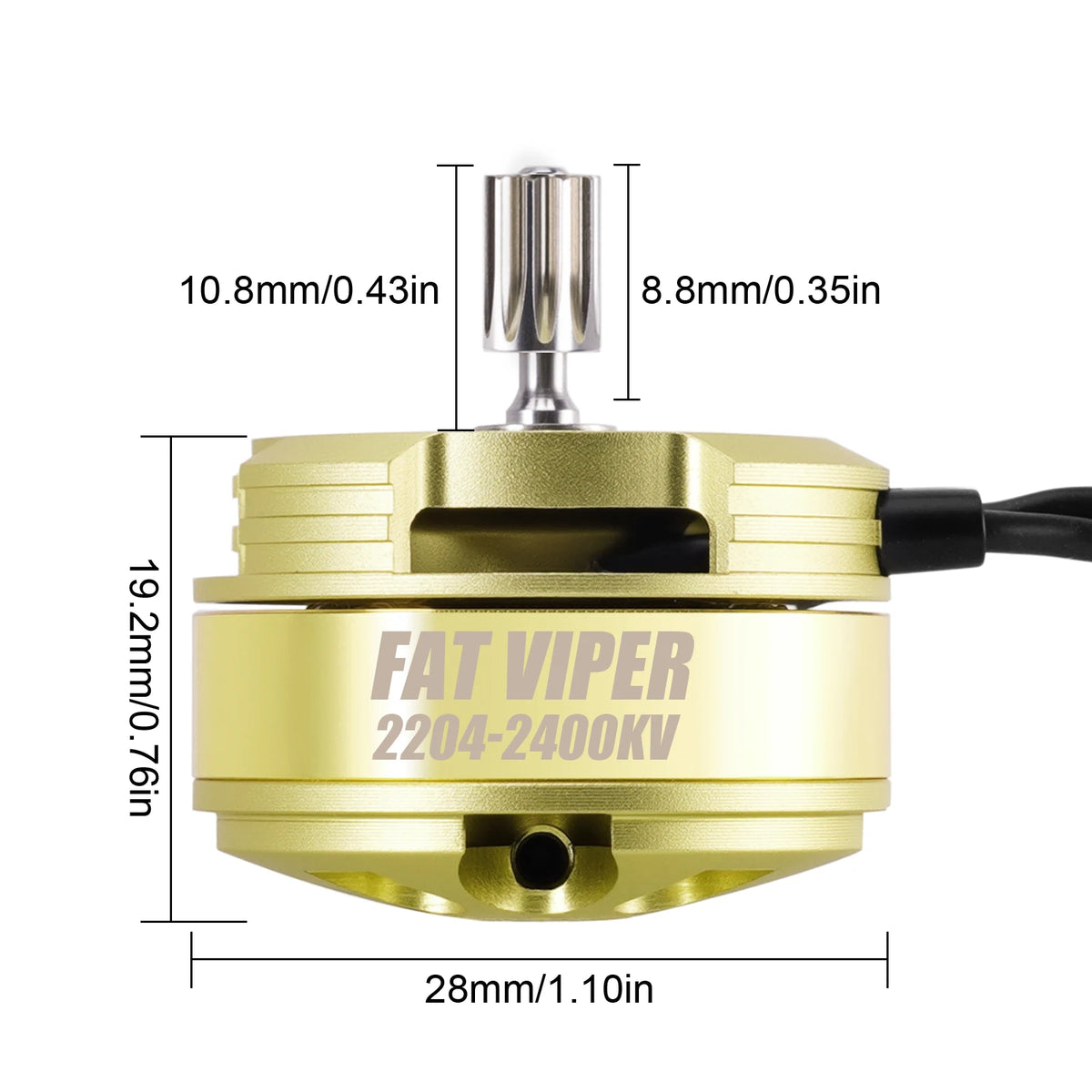

Dimensions: Φ28*19.2mm

Motor Output Shaft: Φ2mm

Weight: 28g

Motor Pinion: 0.4mod 10T

Waterproof: Yes

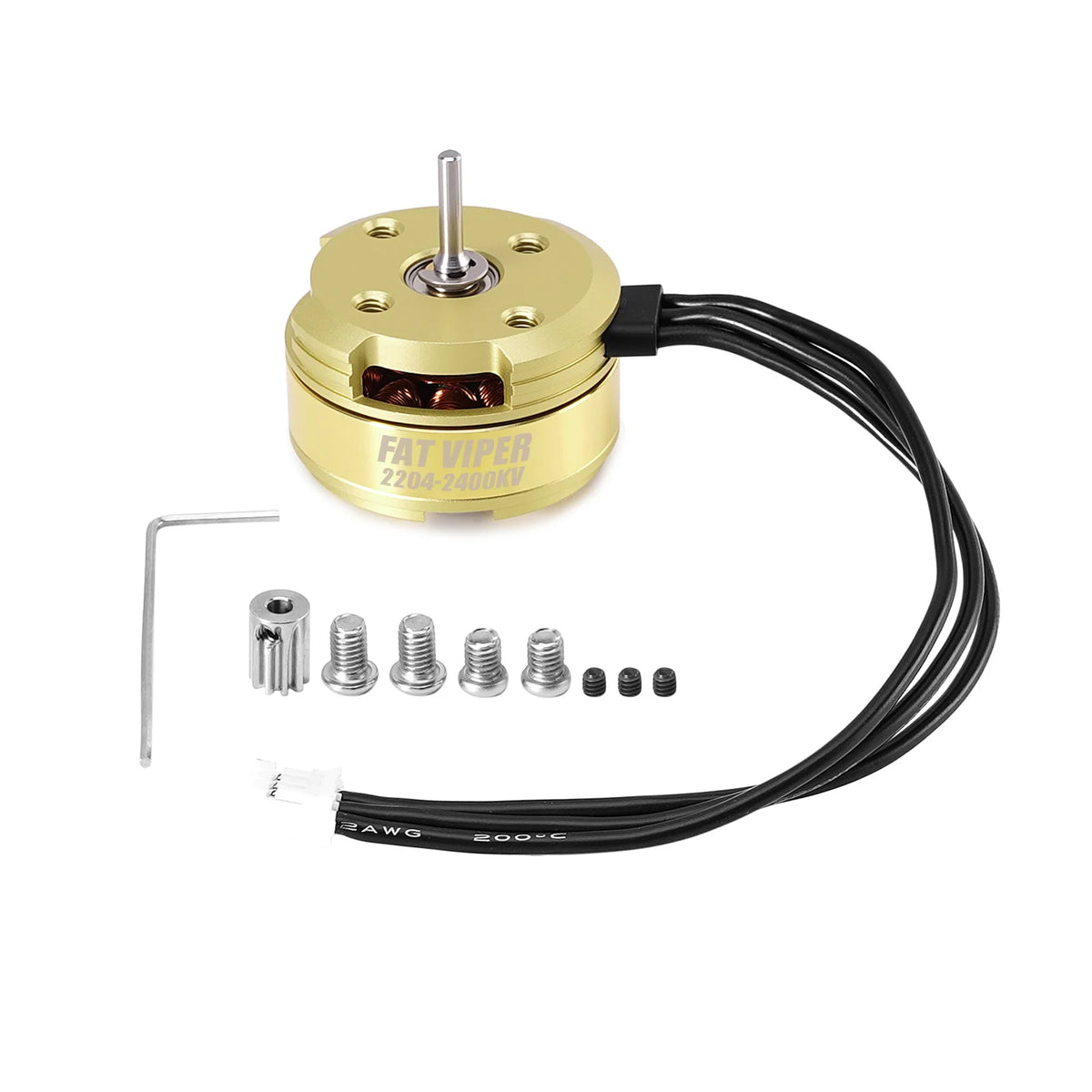

Package List:

1 * Fat Viper 2204 Brushless Motor

1 * Motor Pinion
