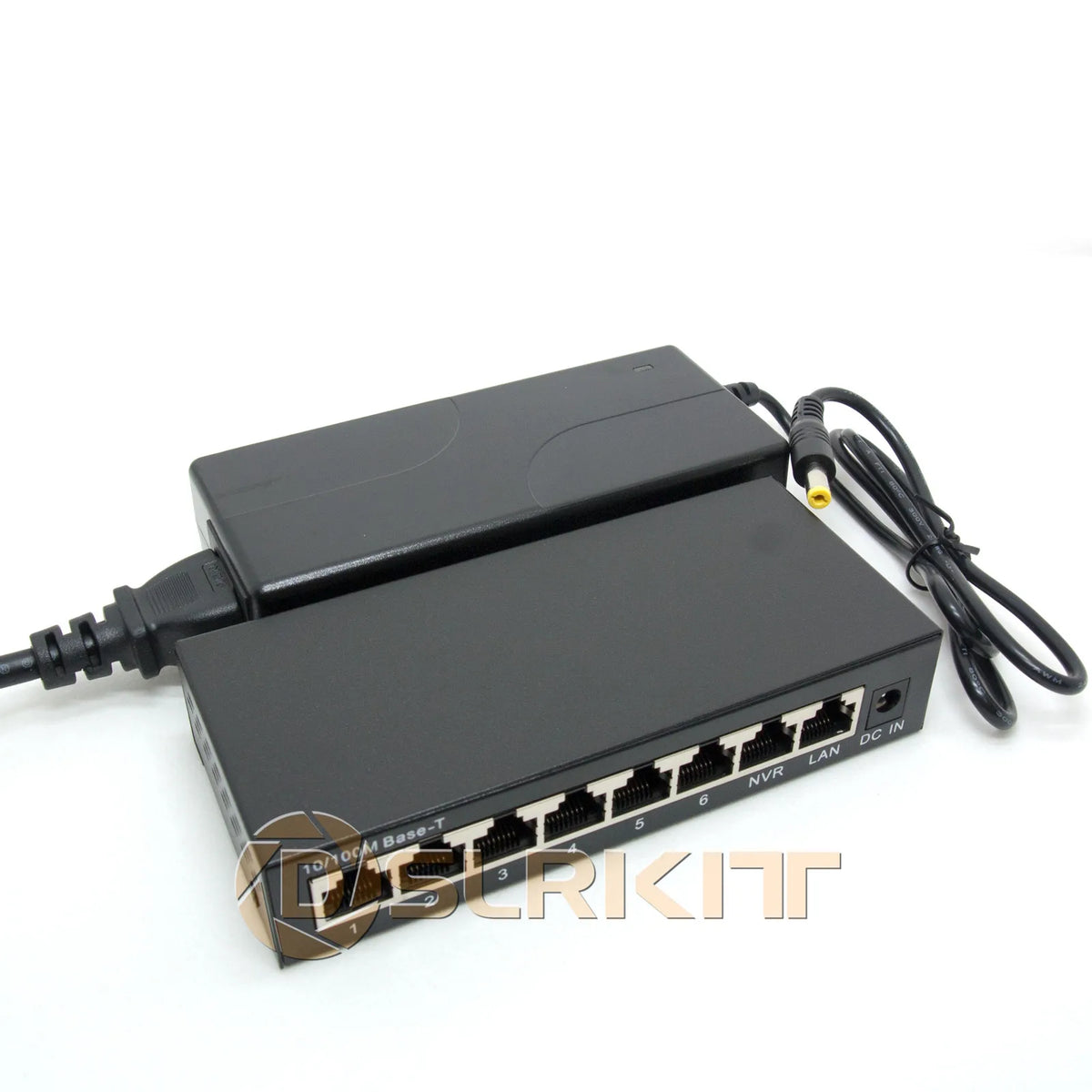

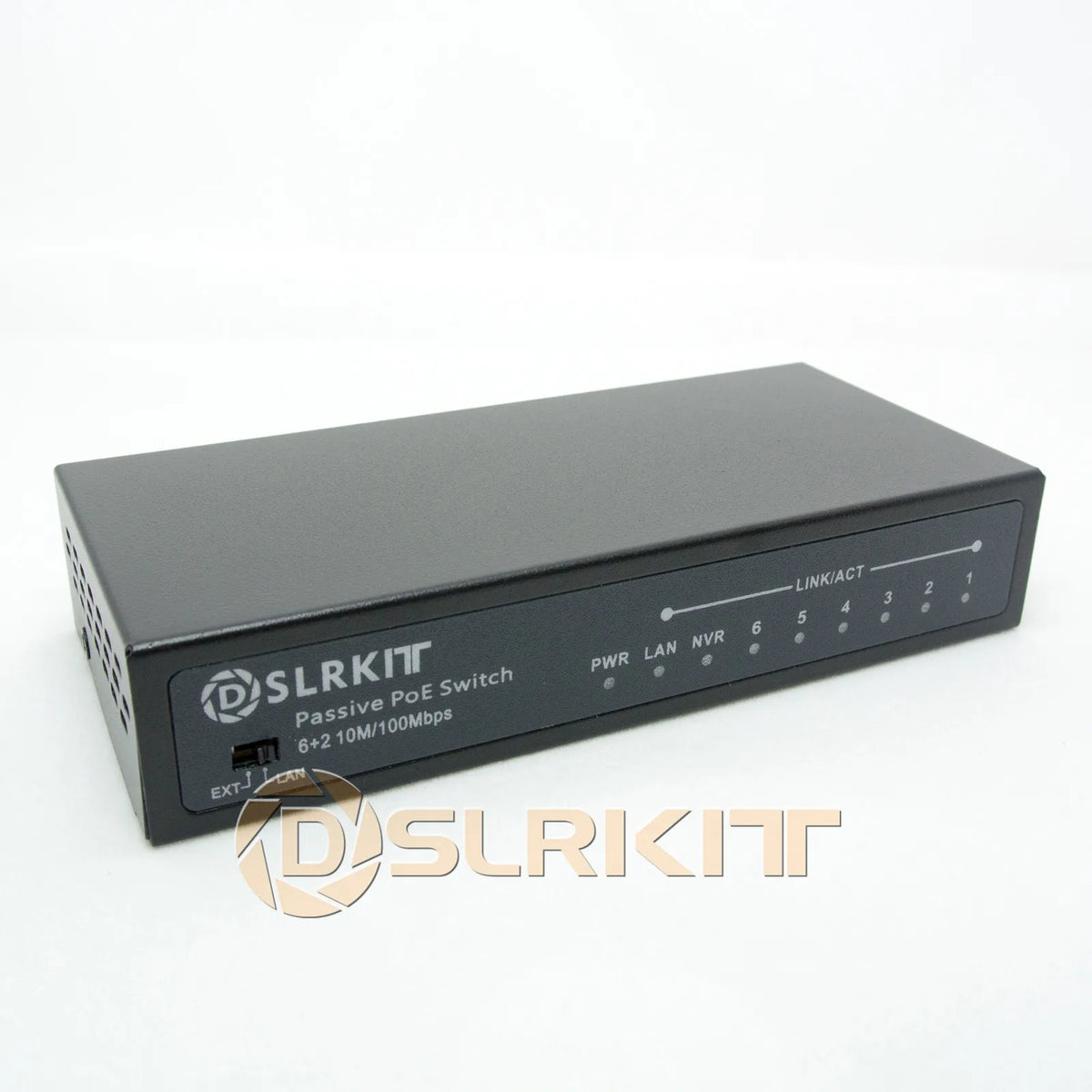

DSLRKIT MID6P2UE Passive PoE Injector Switch

8 Ports (2Uplink, 6 PoE) 10/100Mbps

Passive PoE Power pin(4,5+/7,8-)

24V 3A 72Watt Wall Mount

Compatible 24V Ubiquiti PoE

This is a special PoE Switch with 24V DC out, it can not Compatible with 802.3af(48v). It could work only on some special customized 24V PoE device(e.g Ubiquiti 24V PoE device)
please confirm your device is using DC 24v PoE before you purchase this PoE Switch.
If you can not figure out the PoE voltage of your device, we suggest you to buy 48v PoE Switch which can follow 802.3af agreement.

Compatible 24V Ubiquiti PoE:

UBNT AP/UAP
UAP-LR
UAP-AC-LR
UAP-AC-LITE
NanoStation M2 / NSM2
NanoStation M3 / NSM3
NanoStation M365 / NSM365
NanoStation M5  / NSM5
NanoStation Loco M2
NanoStation Loco M5
NanoStation Loco M9
Ubiquiti Rocket M5,M2,M9,M900
Ubiquiti Rocket M3/M365
Ubiquiti Rocket M2
Ubiquiti Rocket M9/M900
NanoBridge NBM9, NB-2G18, NBM3, NBM365
PowerBeam M5 PBE-M5-300-ISO
airGrid M AG-HP-2G16, AG-HP-2G20, AG-HP-5G23, AG-HP-5G27
LiteBeam M LBE-M5-23, LBE-5AC-23, LBE-5AC-16-120  LBE-5AC-Gen2LBE-5AC-LR
NanoBeam M NBE-M2-13, NBE-M5-16, NBE-M5-19
PowerBeam PBE-M5-300, PBE-M2-400 PBE-AC-Gen2 PBE-AC-ISO-Gen2
airMAX YAGI Antenna AMY-9M16
LiteBeam LBE-M5-23
LiteAP-120 LiteAP-GPS

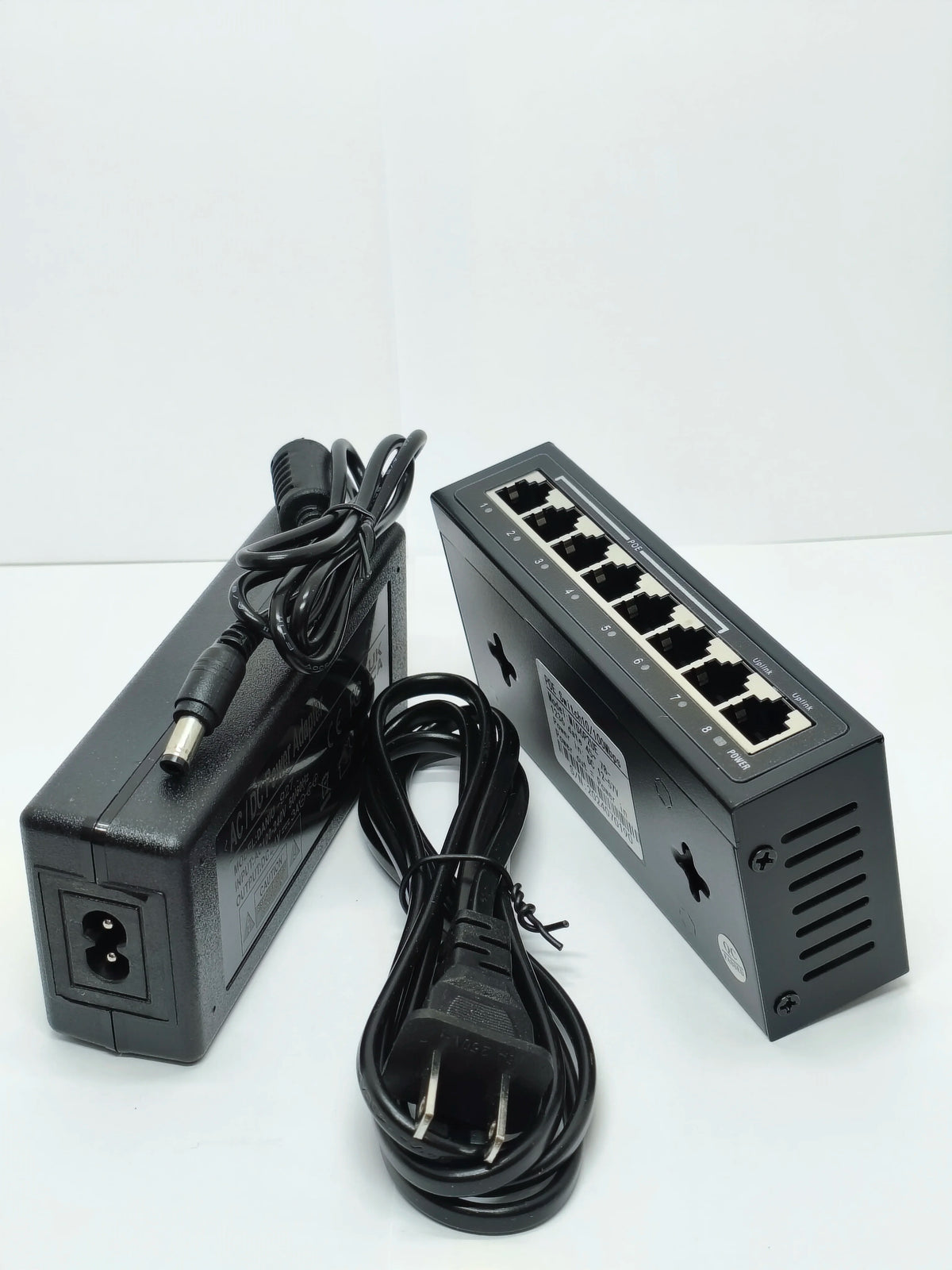

This is an Passive Power Over Ethernet of 8 port 10 / 100Mbps-T Ethernet switches, including 6 Passive PoE Ethernet ports and 2 Uplink ports. With an external 110V-240VAC to 24VDC power supply adapter, any one of the 6poe port can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.

Which do not compatible with IEEE 802.3af and IEEE 802.3at, this is an unusual non-standard 24V unsolicited Power Over Ethernet switch. It supplies power NO MATTER WHAT, so don't plug the ports "1~6" side into anything that isn't ready for it.

This POE switch only support 10/100M connection, do not support gigabit ethernet connection, because "1~6" port using 4,5,7,8 pin as power transfer, Please do not connect any gigabit ethernet device on "1~6" port, this will damage your device.

Gigabit(10/100/1000Mbps) ethernet device Please do not access "Power Link port" this will damage your device.

Passive PoE devices that support MikroTik PoE with an input voltage of DC 8-30V or 18-30V.

Features:

8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function
Compatible 24V Ubiquiti PoE
Supports PoE power up to 65W for all PoE ports.
Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
Full/half duplex transfer mode for each port.

Specification:

ALL Port:	Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with 4 pairs UTP Cat5/5e/6 cable。

RJ45 Port 1-6:	Unsolicited power on pairs (4,5+/7,8-) pins, 24V

Power LED	LED ON: power on. LED OUT: power off
Yellow Light LINK/ACT	LED ON Indicates the port is connected to a network device and has been started
	LED OFF Indicates that this port is not connected to a network device or has not been started

Standard	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3x Full-Duplex flow control
Protocol	CSMA/CD Ethernet
Data Transfer Rate	Ethernet: 10Mbps (Half Duplex)，20Mbps (Full Duplex)
	Fast Ethernet: 100Mbps (Half Duplex) ，200Mbps (Full Duplex)
Network Media(Cable)	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
	100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Power on RJ45	Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8
	DC Output: 24V, Per port Max 1A or 24Watt, 4POE ports Total 3A(Max. 72Watt)

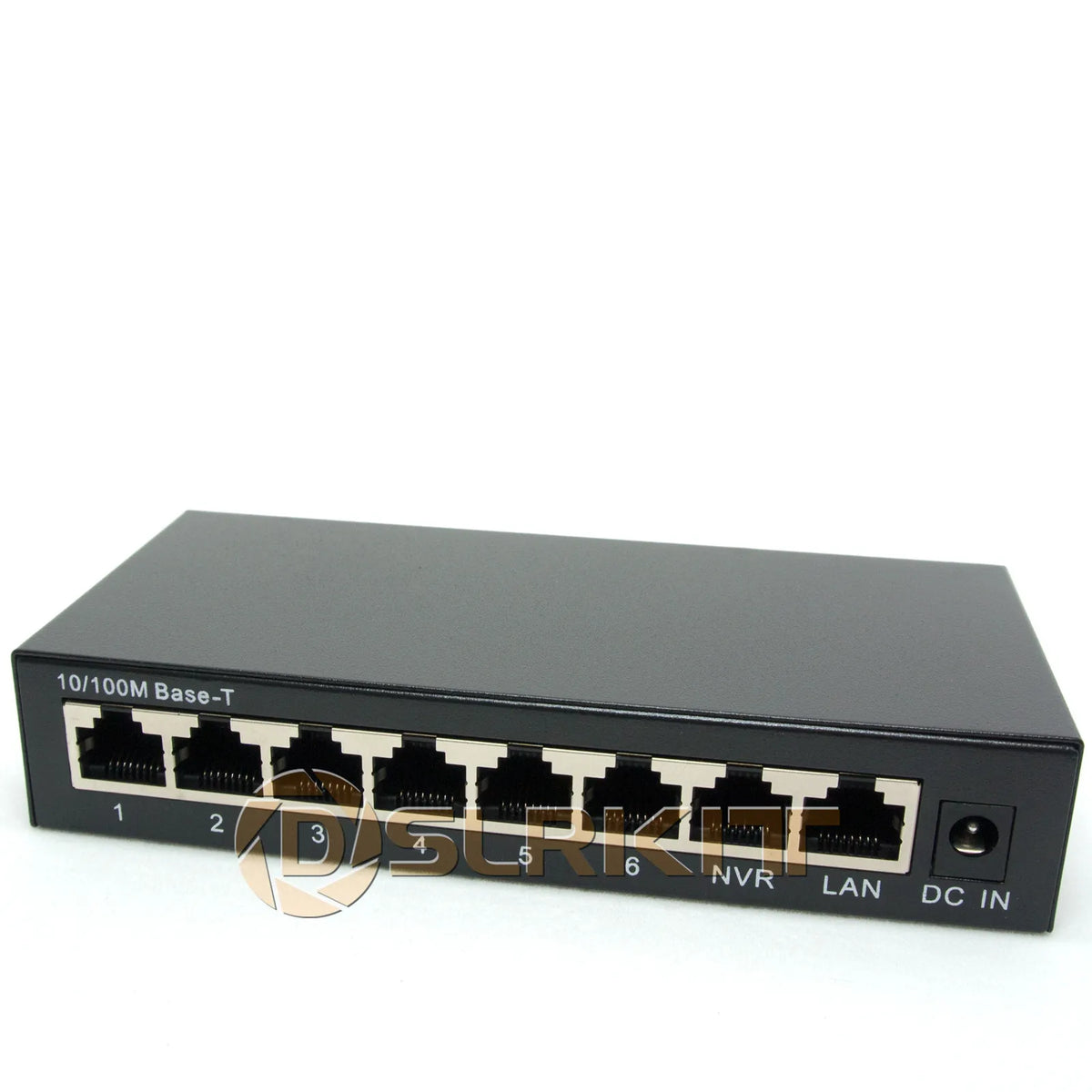

Number of Ports	8 x10/100Mbps Auto-Negotiation RJ45 ports with 6 PoE enabled (port-1 ~ port-6)
AC Power Adapter	AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.
	DC OutPut: 24V/3A
Power Consumption	3.2 Watts (max. no PD connected)
	According to the actual power consumption of equipment
Temperature	Operation Temperature:0 ~40℃ (32 ~104℉ )
	Storage Temperature: -40 ~70℃(-40 ~158℉)
Humidity	Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing

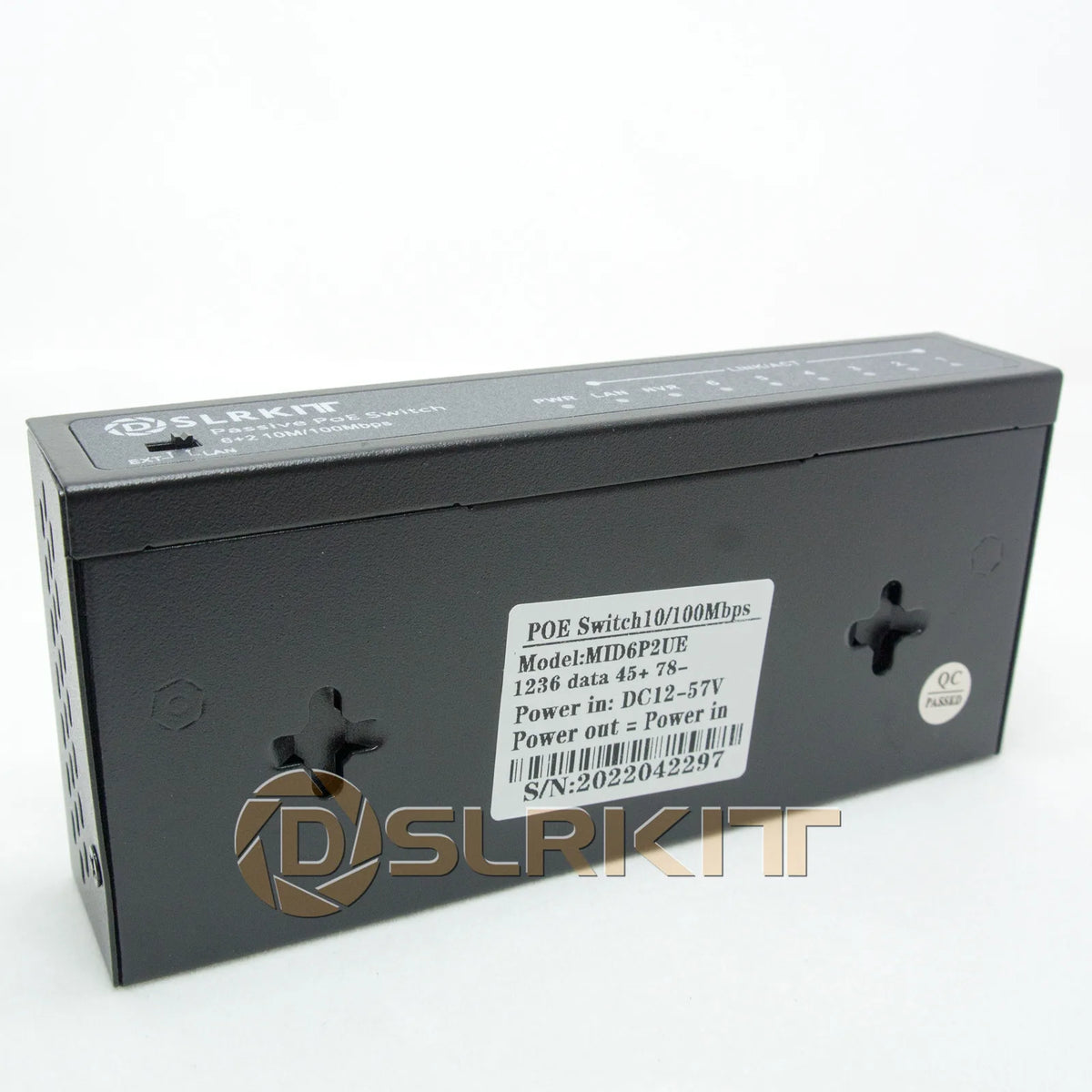

Product Dimensions	140mm W x 56mm D x 28mm H
RAM Register Capacity	64K bytes per device
MAC Address List	1K entries per device
Frame Forward Rate	10Mbps Ethernet: 14880pps/Port
	100Mbps Ethernet: 14880pps/Port
